Installation

SUSPENSION: FRONT STABILIZER BAR: INSTALLATION

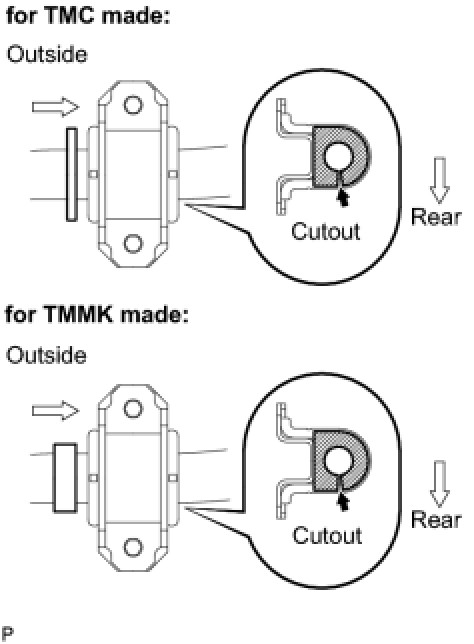

1. INSTALL FRONT NO. 1 STABILIZER BAR BUSHING

(a) Install the 2 front stabilizer bar bushings No. 1 to the outside of the bushing stopper on the front stabilizer bar.





NOTICE:
Make sure that the cutout of the front stabilizer bar bushing No. 1 faces the rear side as shown in the illustration.

2. INSTALL FRONT NO. 1 STABILIZER BRACKET LH

(a) Install the front No. 1 stabilizer bracket LH.

3. INSTALL FRONT NO. 1 STABILIZER BRACKET RH

(a) Install the front No. 1 stabilizer bracket RH.

4. INSTALL FRONT STABILIZER BAR

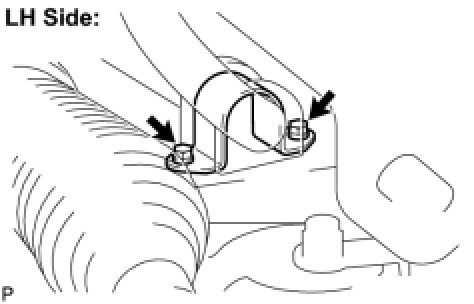

(a) Install the front stabilizer bar with the 2 bolts. (LH Side)





Torque : 27 Nm (275 kgf-cm, 20 ft-lbf)

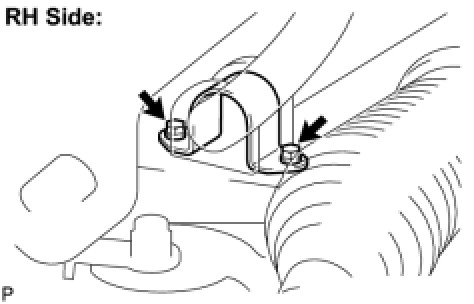

(b) Install the front stabilizer bar with the 2 bolts. (RH Side)





Torque : 27 Nm (275 kgf-cm, 20 ft-lbf)

5. INSTALL ENGINE ASSEMBLY WITH TRANSAXLE

HINT
Refer to the instructions for installation of the engine assembly Installation for 2AR-FE, Installation for 2GR-FE)

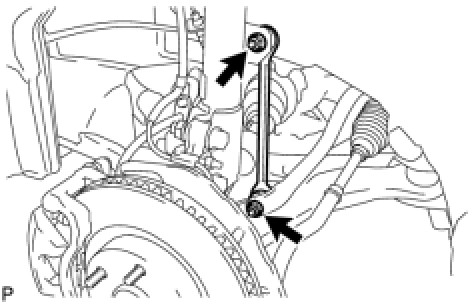

6. INSTALL FRONT STABILIZER LINK ASSEMBLY LH

(a) Install the front stabilizer link assembly LH with the 2 nuts.





Torque : 74 Nm (755 kgf-cm, 55 ft-lbf)

HINT
If the ball joint turns together with the nut, use a hexagon (6 mm) wrench to hold the stud.

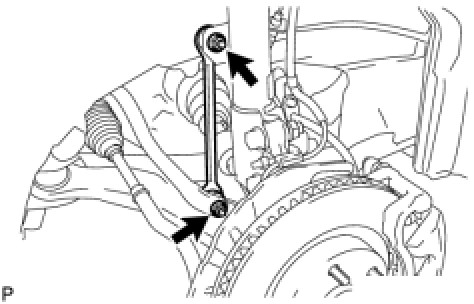

7. INSTALL FRONT STABILIZER LINK ASSEMBLY RH

(a) Install the front stabilizer link assembly RH with the 2 nuts.





Torque : 74 Nm (755 kgf-cm, 55 ft-lbf)

HINT
If the ball joint turns together with the nut, use a hexagon (6 mm) wrench to hold the stud.

8. CONNECT TIE ROD END SUB-ASSEMBLY Installation

9. CONNECT STEERING INTERMEDIATE SHAFT ASSEMBLY Installation

10. PLACE FRONT WHEELS FACING STRAIGHT

11. INSTALL FRONT WHEELS

Torque : 103 Nm (1,050 kgf-cm, 76 ft-lbf)

12. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

13. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT

Front Wheel Alignment
