Removal

SUSPENSION: FRONT LOWER SUSPENSION ARM (except Models with 2AR-FE and Automatic Transaxle): REMOVAL

HINT
* Use the same procedures for the RH side and the LH side.
* The procedures listed below are for the LH side.

1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE

HINT
Refer to the instructions for installation of the engine assembly with transaxle Removal for 2AR-FE, Removal for 2GR-FE).

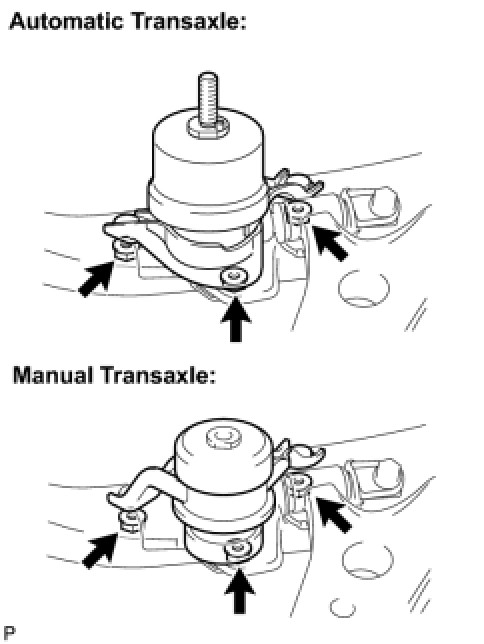

2. REMOVE ENGINE MOUNTING INSULATOR

(a) Remove the 3 nuts and the engine mounting insulator.





3. REMOVE FRONT SUSPENSION LOWER NO. 1 ARM

(a) Remove the 3 bolts and the nut on the front suspension lower No. 1 arm and remove it from the front frame assembly.





(b) Remove the front lower arm bushing stopper.
