Scan Tool Testing and Procedures

STEERING COLUMN: STEERING LOCK SYSTEM: DATA LIST / ACTIVE TEST

1. DATA LIST

HINT
Using Techstream to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be discovered before parts or wiring is disturbed.

Reading the Data List information early in troubleshooting is one way to save diagnostic time.

NOTICE:
In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when a part is faulty or not.

(a) Turn the engine switch off.

(b) Connect Techstream to the DLC3.

(c) Turn the engine switch on (IG).

(d) Turn Techstream on.

(e) Enter the following menus: Body Electrical / Smart Key / Data List.

(f) According to the display on the tester, read the "Data List".

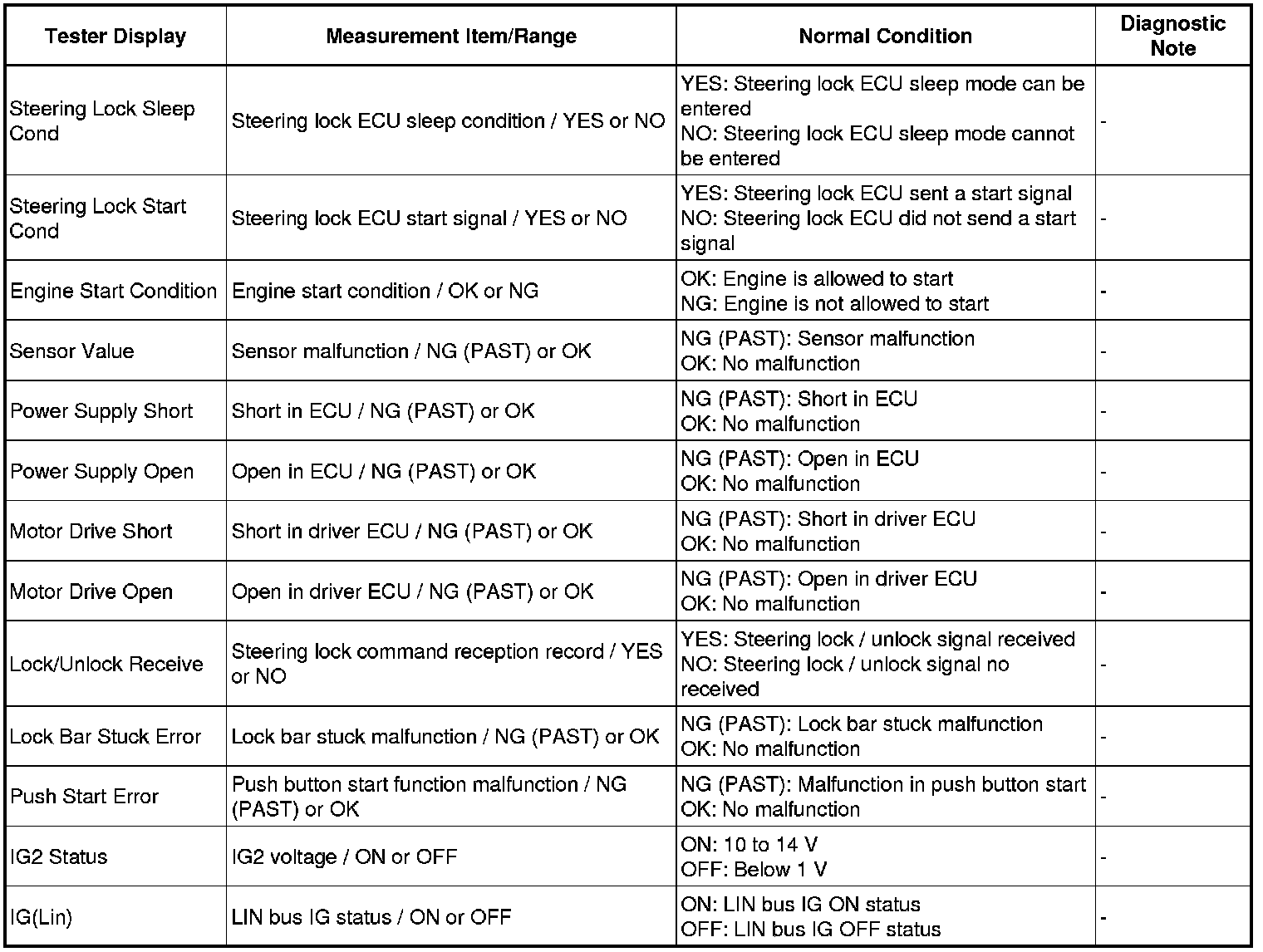

Smart Key:





2. ACTIVE TEST

HINT
Using Techstream to perform Active Tests allows relays, VSVs, actuators and other items to be operated without removing any parts. This non-intrusive functional inspection can be very useful because intermittent operation may be discovered before parts of wiring is disturbed.

Performing Active Tests early in troubleshooting is one way to save diagnostic time. Data List information can be displayed while performing Active Tests.

(a) Turn the engine switch off.

(b) Connect Techstream to the DLC3.

(c) Turn the engine switch on (IG).

(d) Turn Techstream on.

(e) Enter the following menus: Body Electrical / Smart Key / Active Test.

(f) According the display on the tester, perform the "Active Test".

Smart Key:
