Pinout Values and Diagnostic Parameters

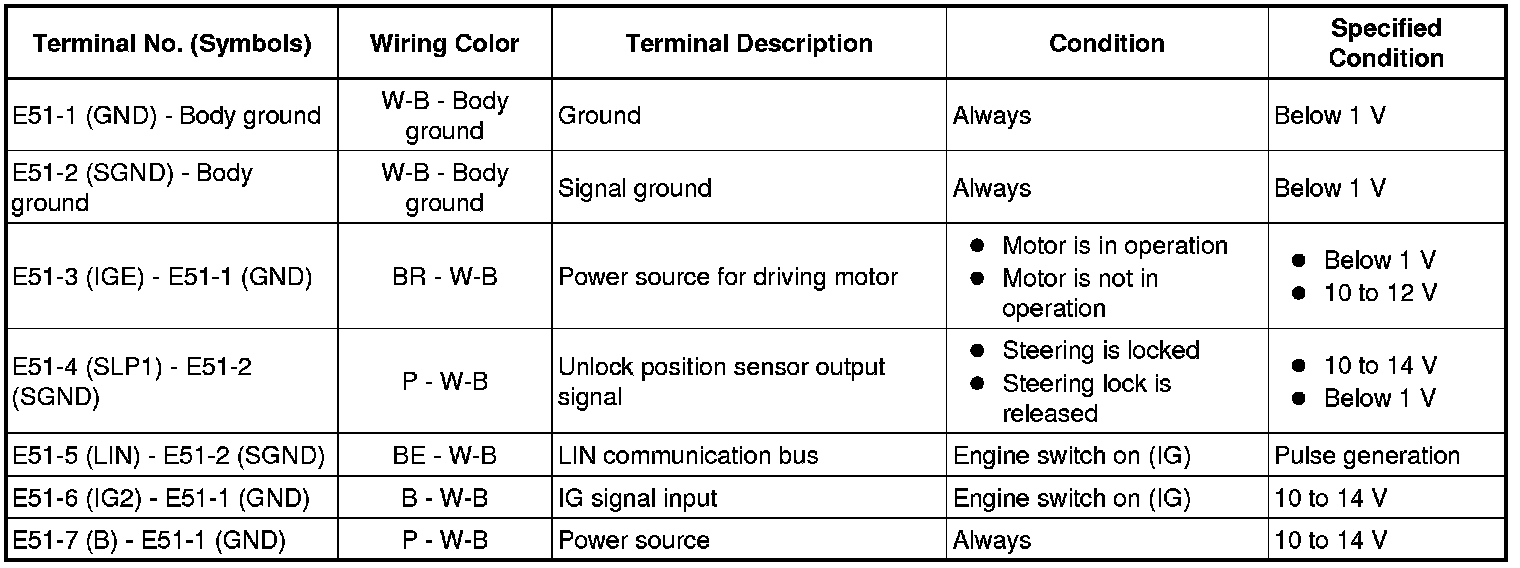

STEERING COLUMN: STEERING LOCK SYSTEM: TERMINALS OF ECU

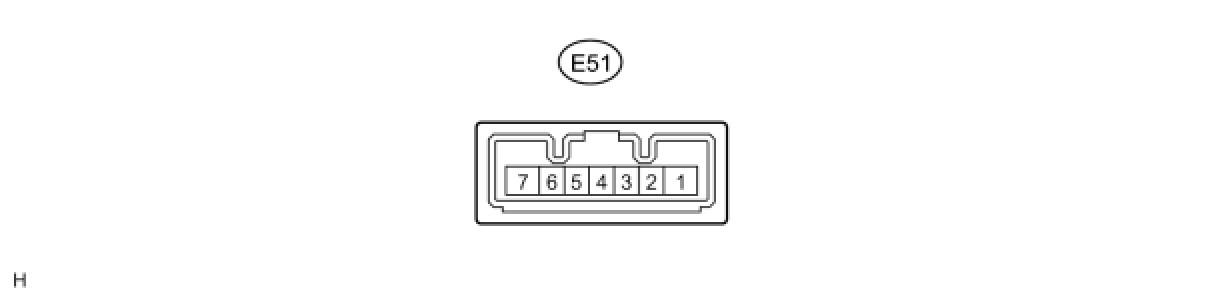

1. STEERING LOCK ACTUATOR ASSEMBLY (STEERING LOCK ECU)
