Component Tests and General Diagnostics

U760E AUTOMATIC TRANSAXLE: PARK / NEUTRAL POSITION SWITCH: INSPECTION

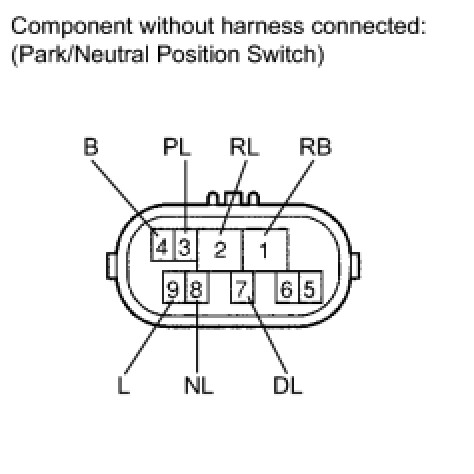

1. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY

(a) Measure the resistance according to the value(s) in the table below when the shift lever is moved to each position.

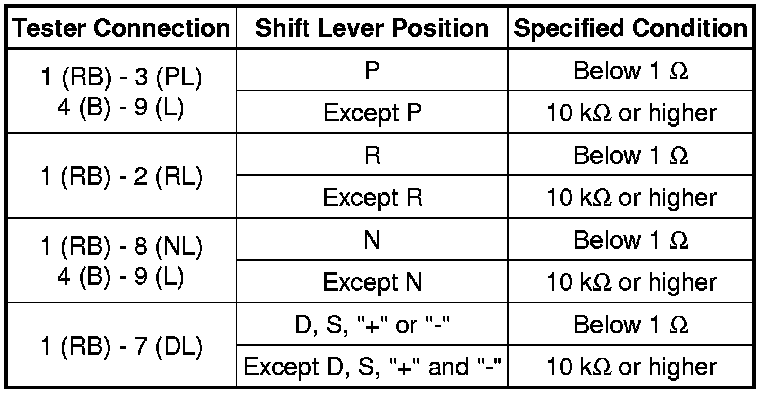

Standard Resistance:





If the result is not as specified, replace the park/neutral position switch assembly.
