Ignition Relay (w/ Smart Key System)

2AR-FE STARTING: IGNITION RELAY (w/ Smart Key System): ON-VEHICLE INSPECTION

1. INSPECT NO. 2 IGNITION RELAY

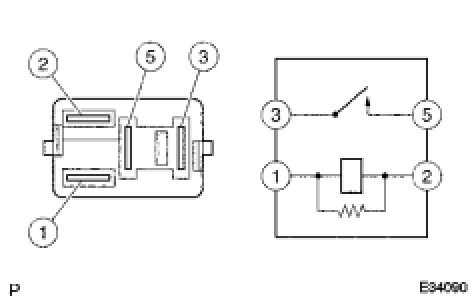

(a) Using an ohmmeter, measure the resistance between each terminal.

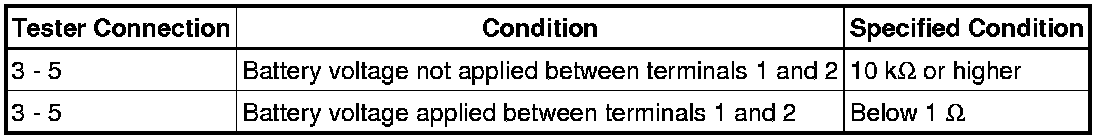

Standard Resistance:





If the result is not as specified, replace the No. 2 ignition relay.
