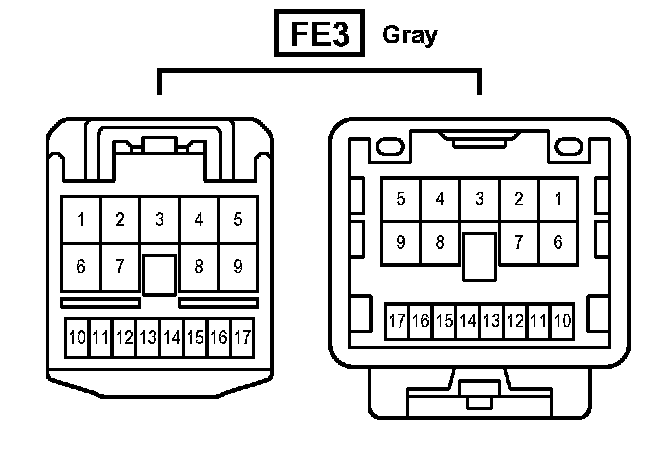

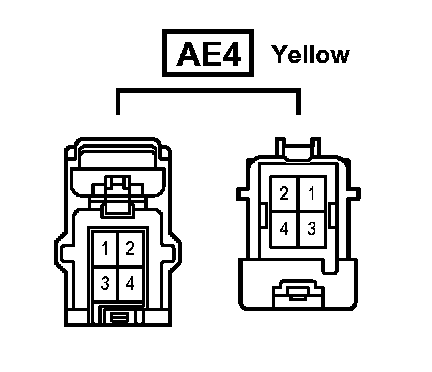

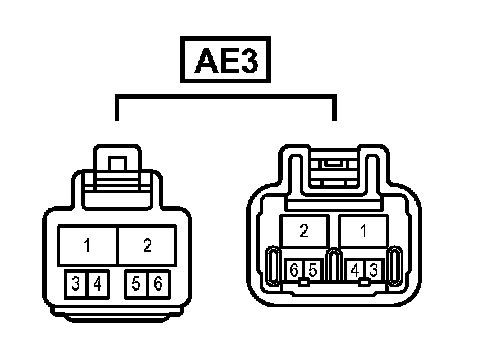

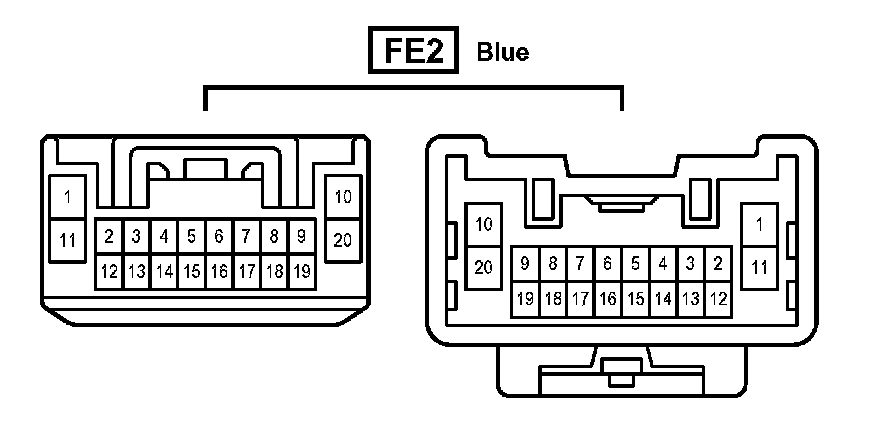

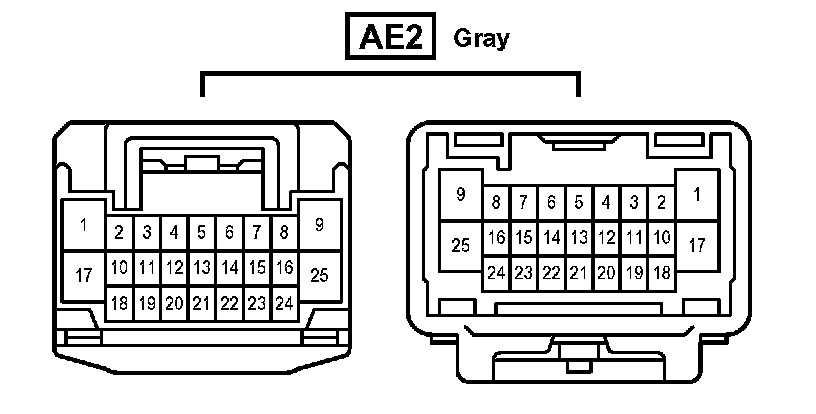

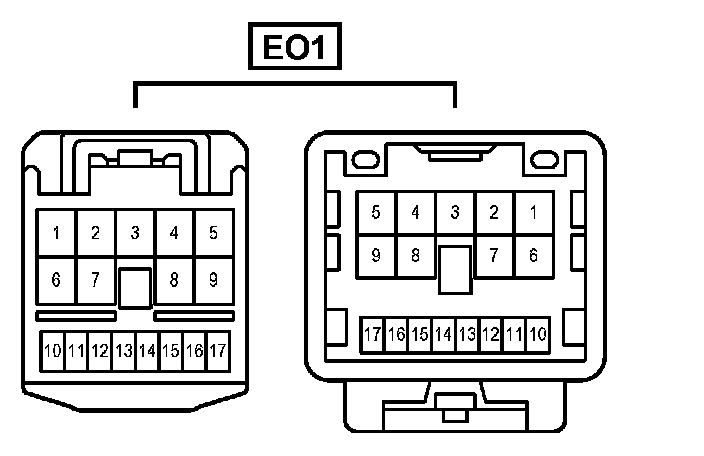

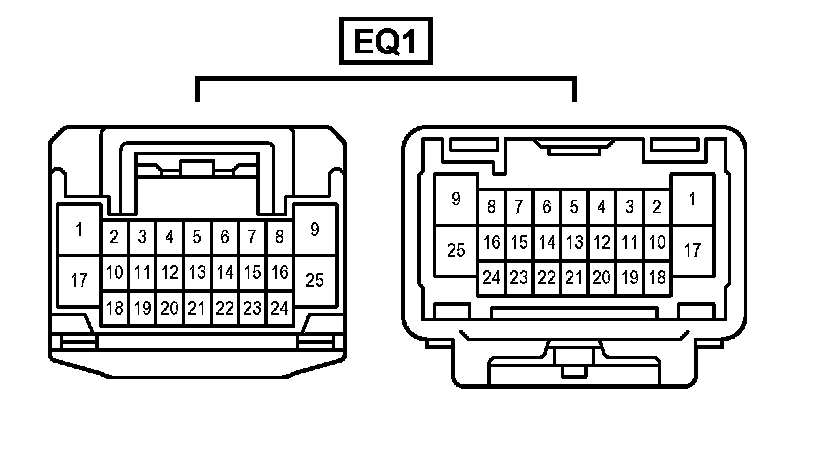

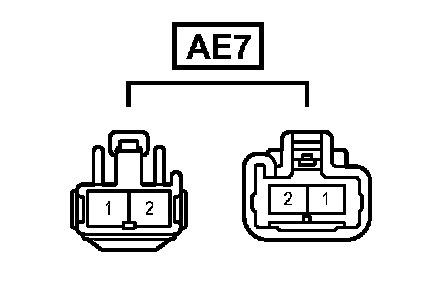

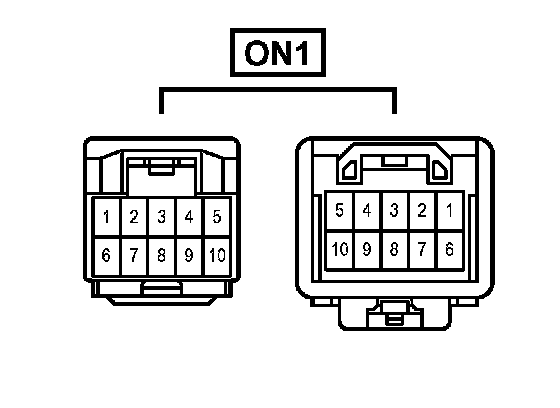

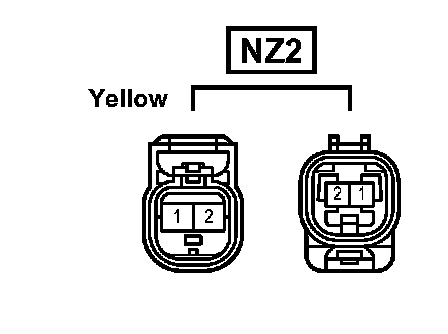

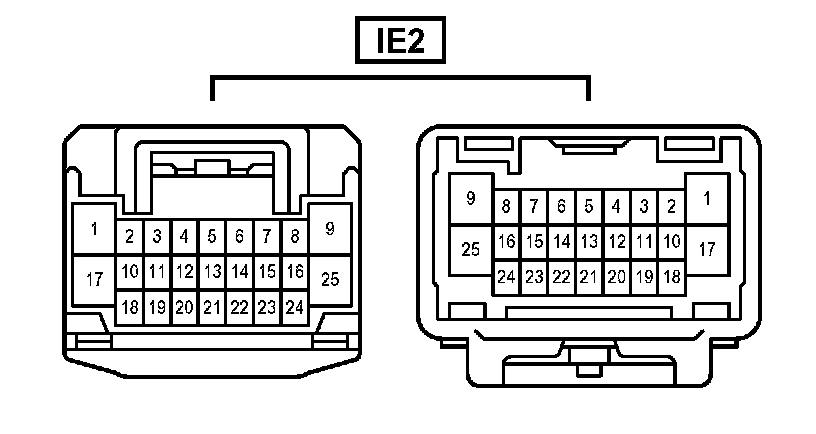

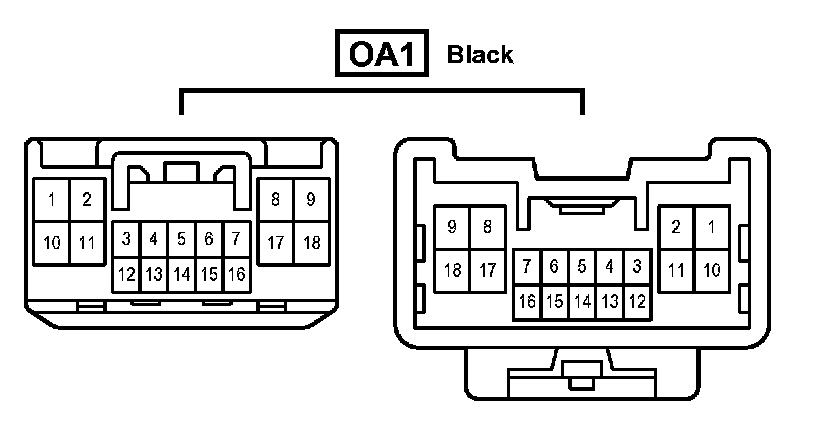

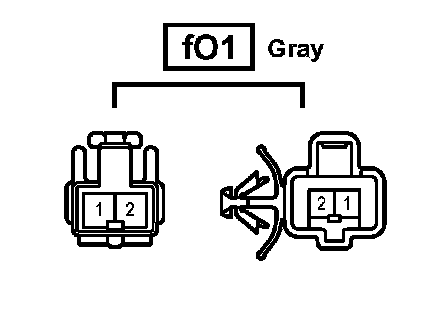

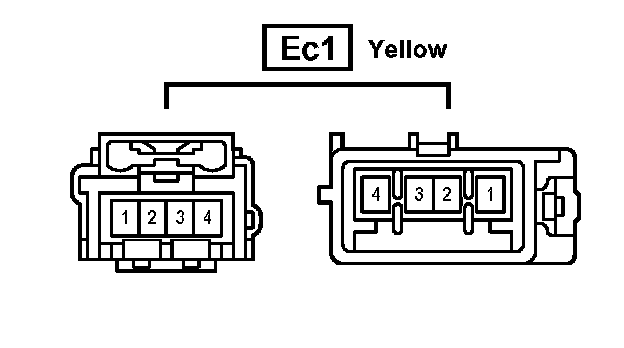

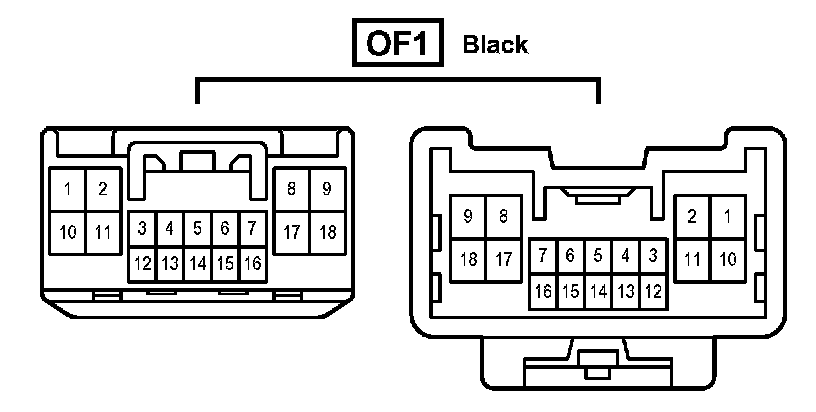

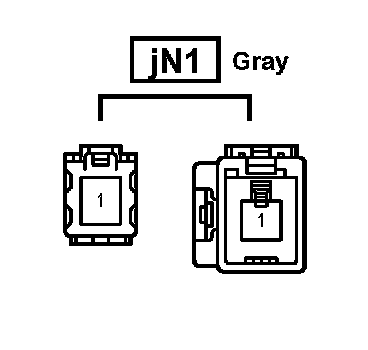

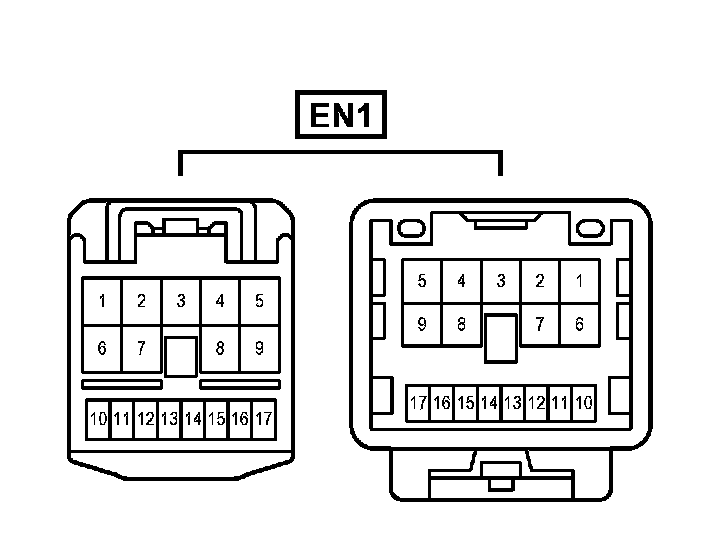

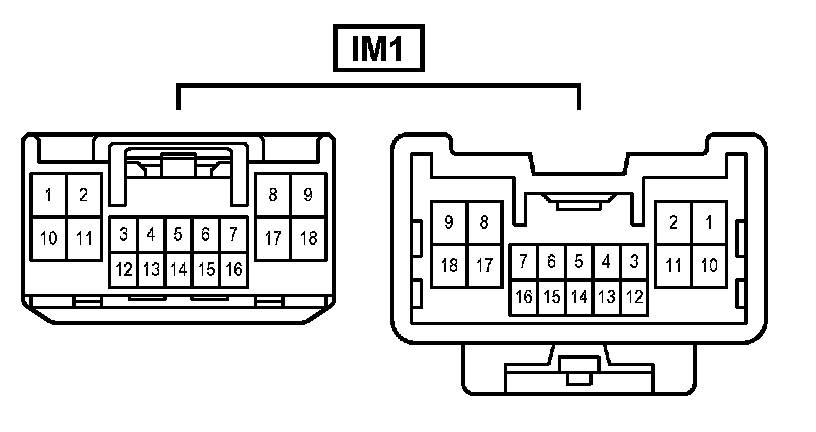

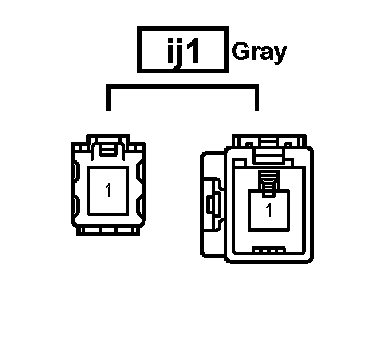

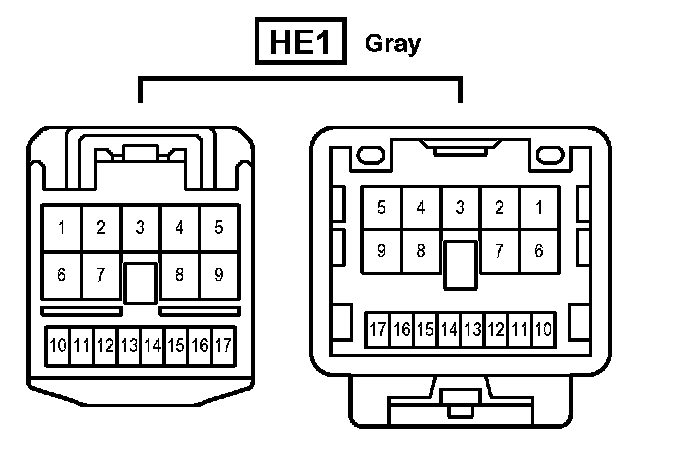

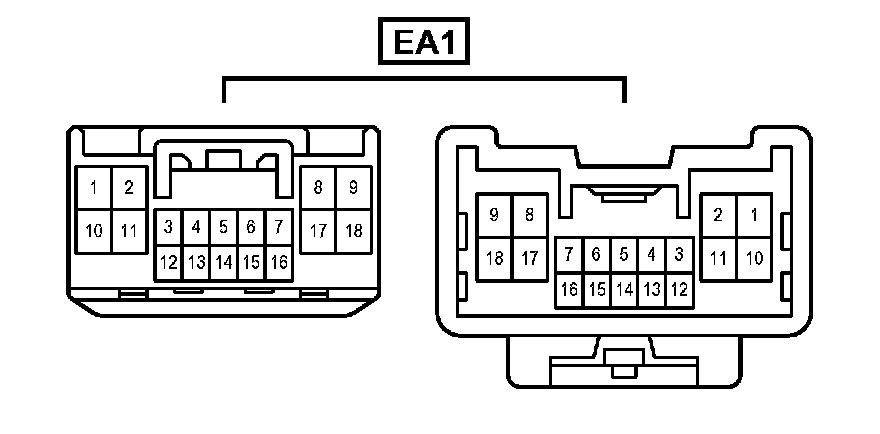

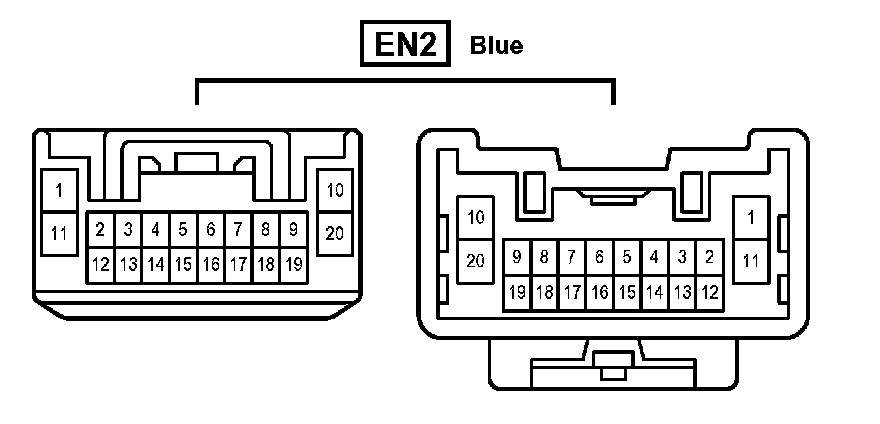

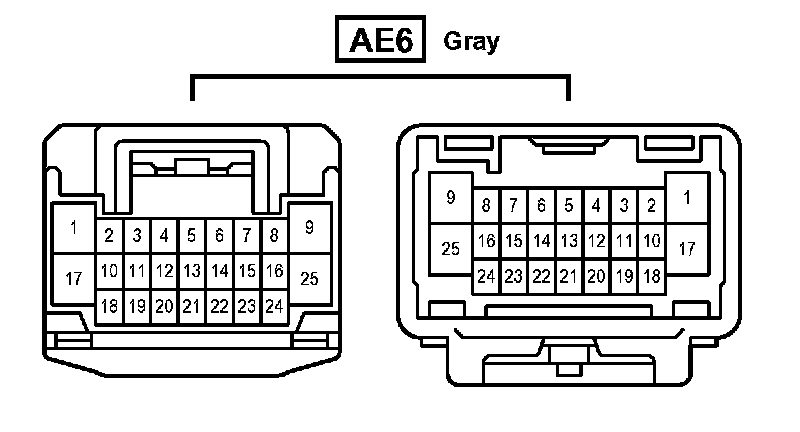

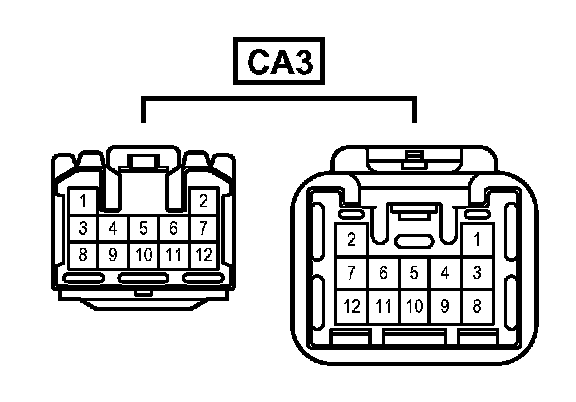

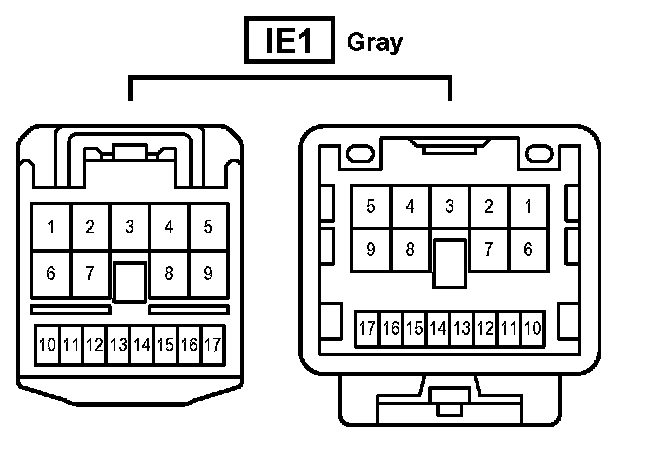

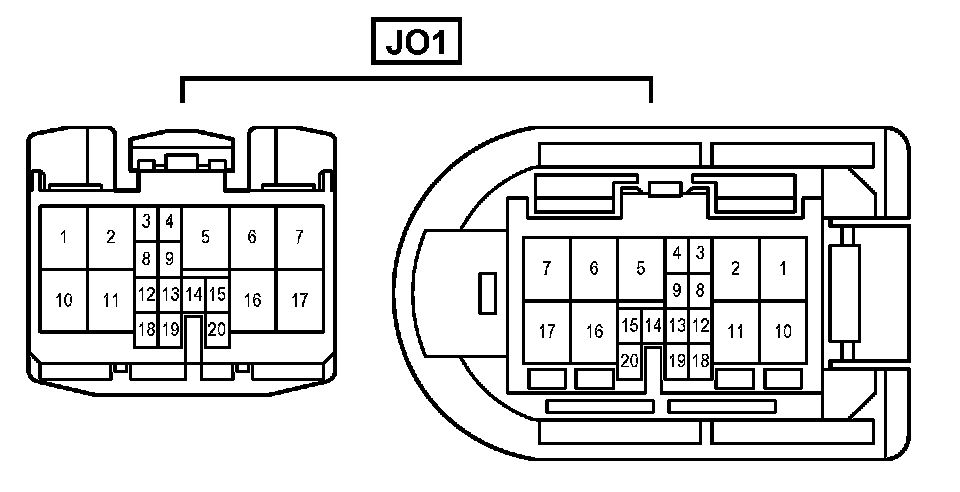

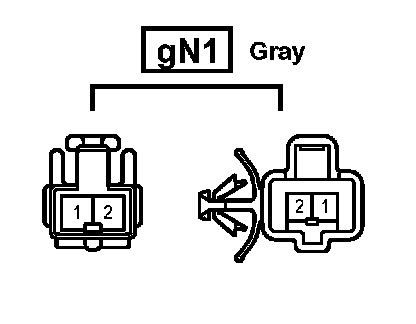

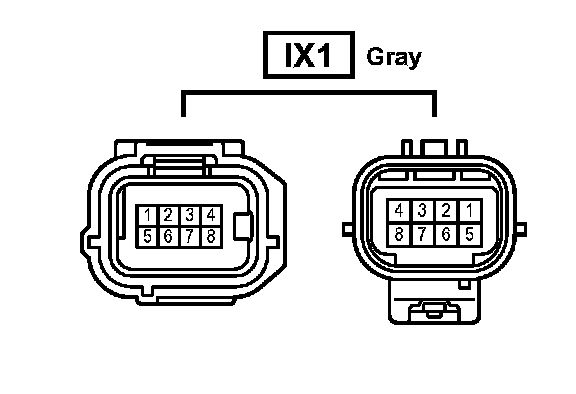

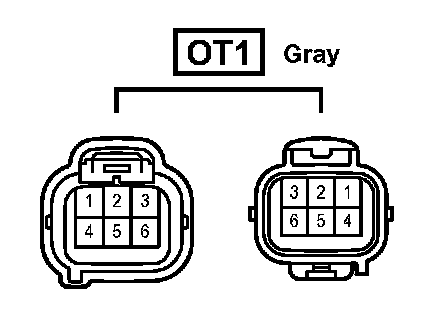

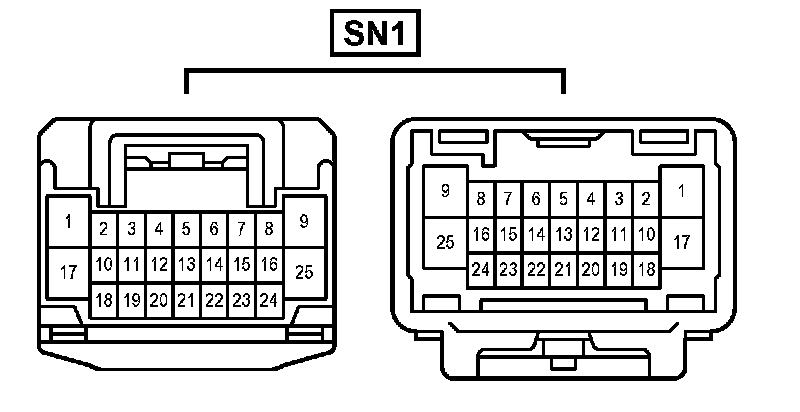

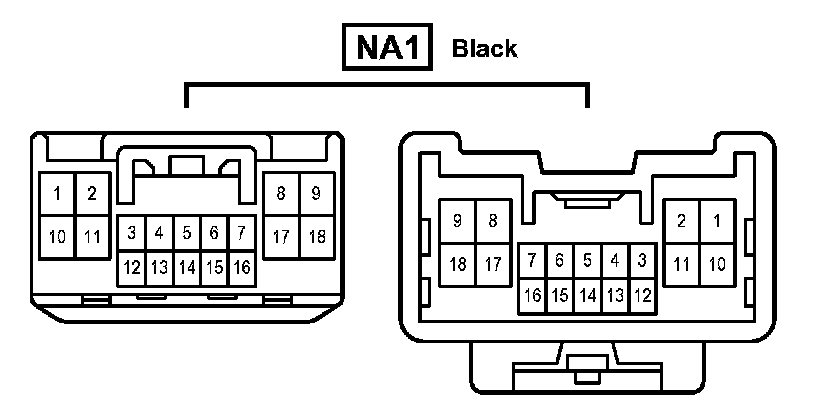

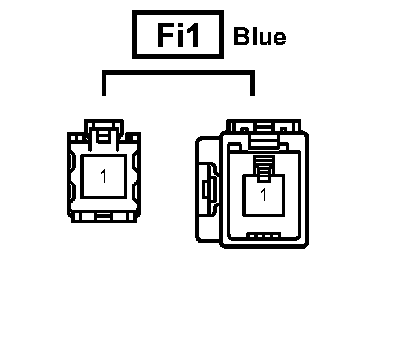

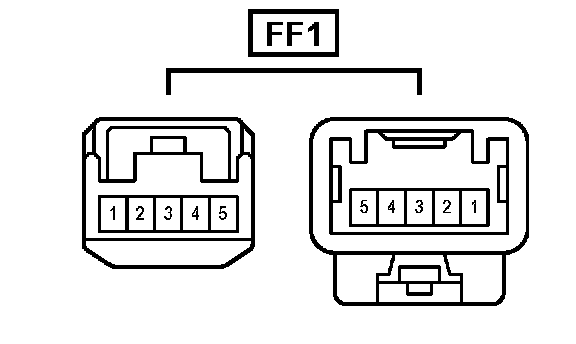

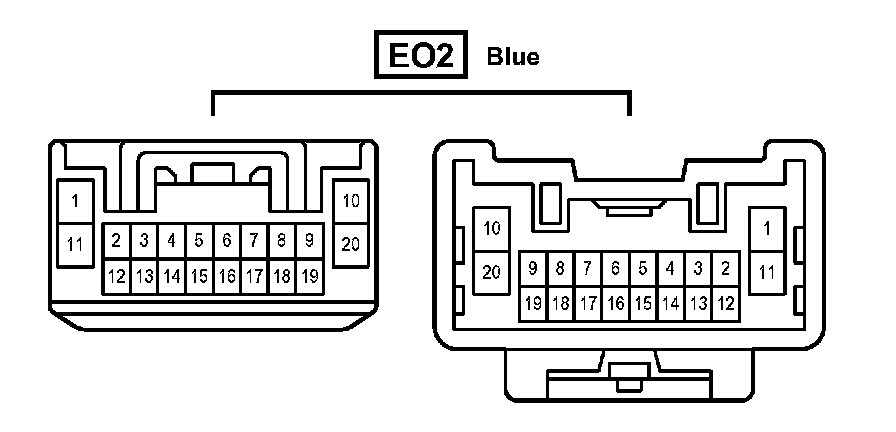

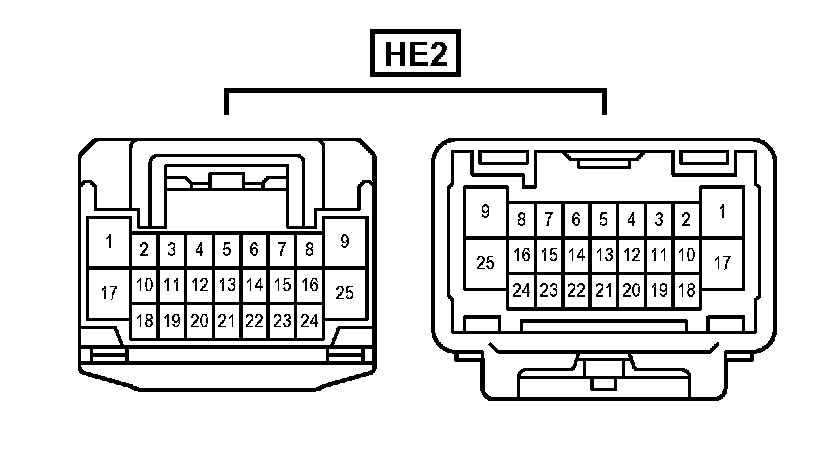

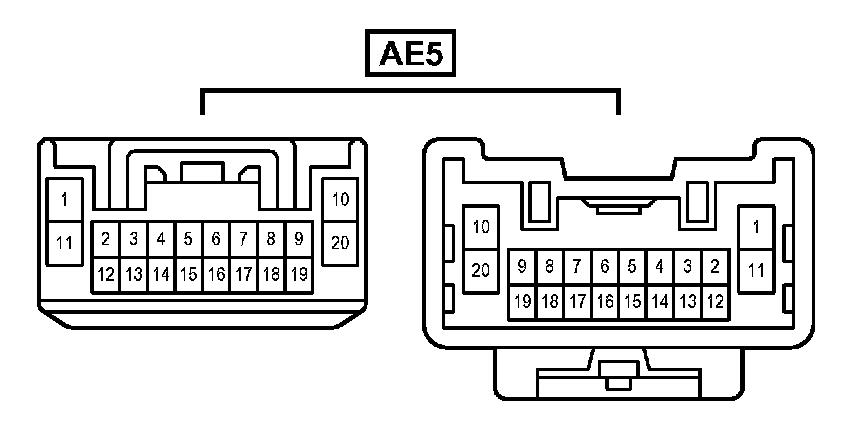

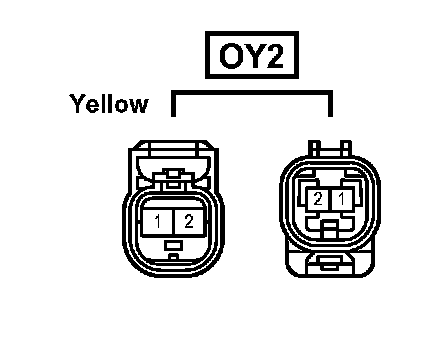

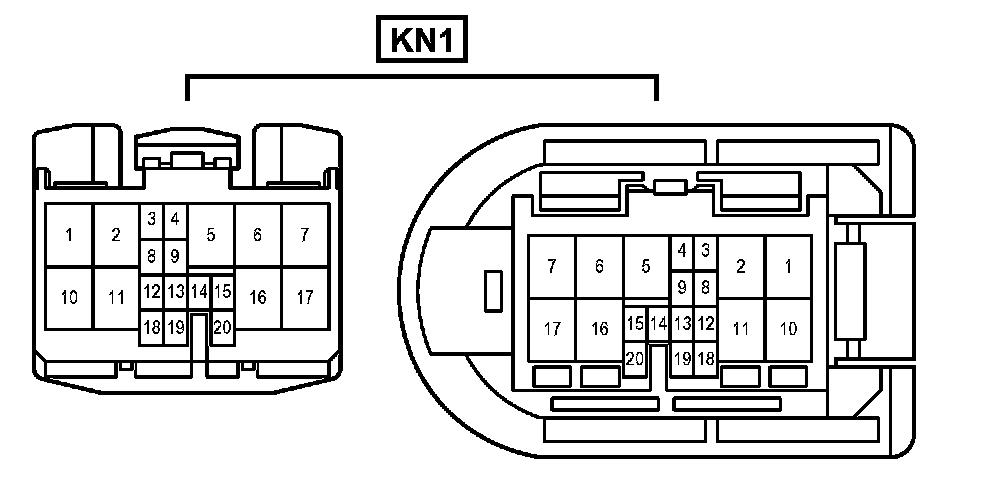

Junction Connector (Wire Harness)

On Left: Female Connector Shapes
On Right: Male Connector Shapes

Connector Colors:

Black














Gray















































Blue














Yellow














Connectors with no indicated colors are white in color
