Fuse Layout and Amperage Ratings




Fuse Layout and Amperage Ratings

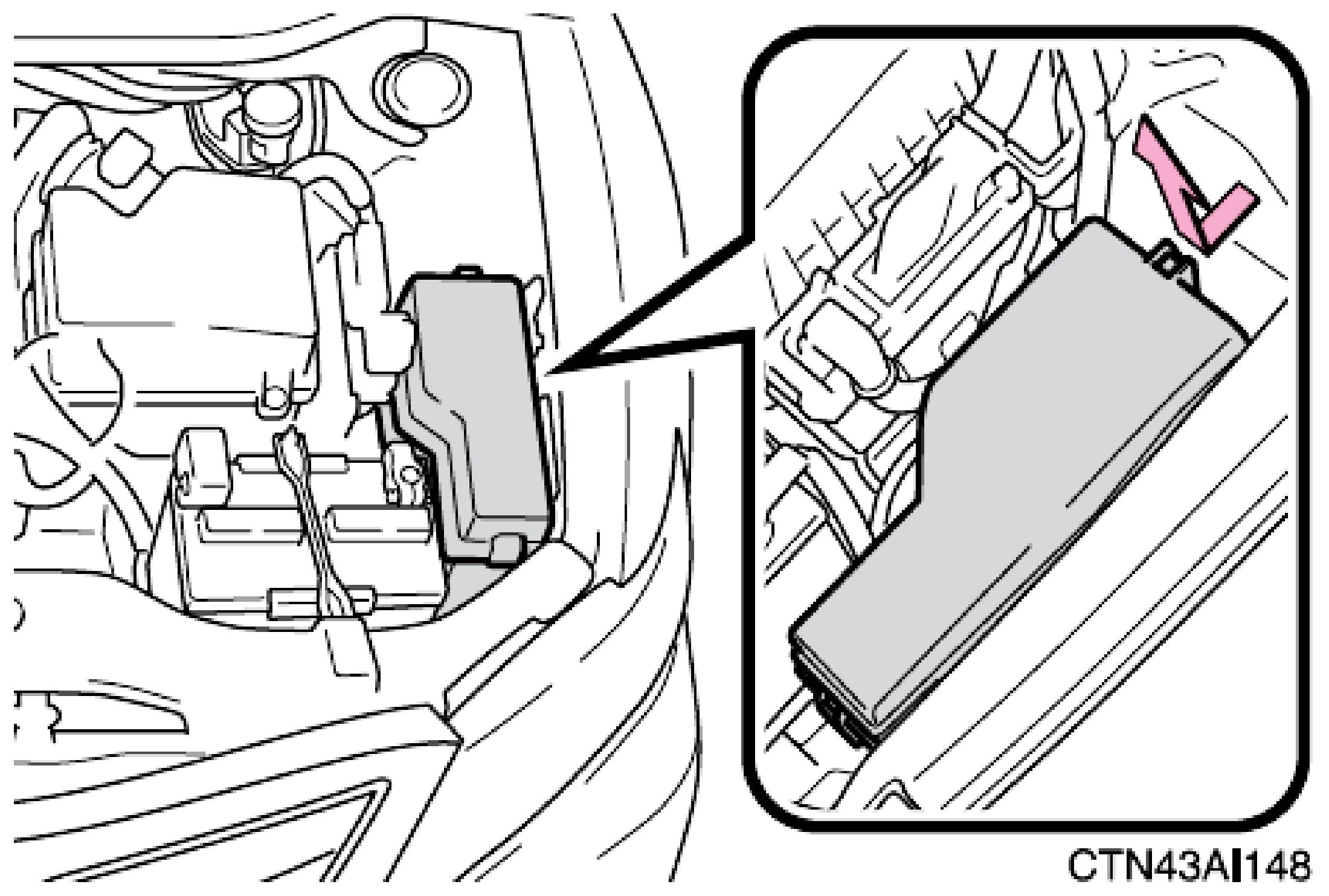

Engine Compartment:

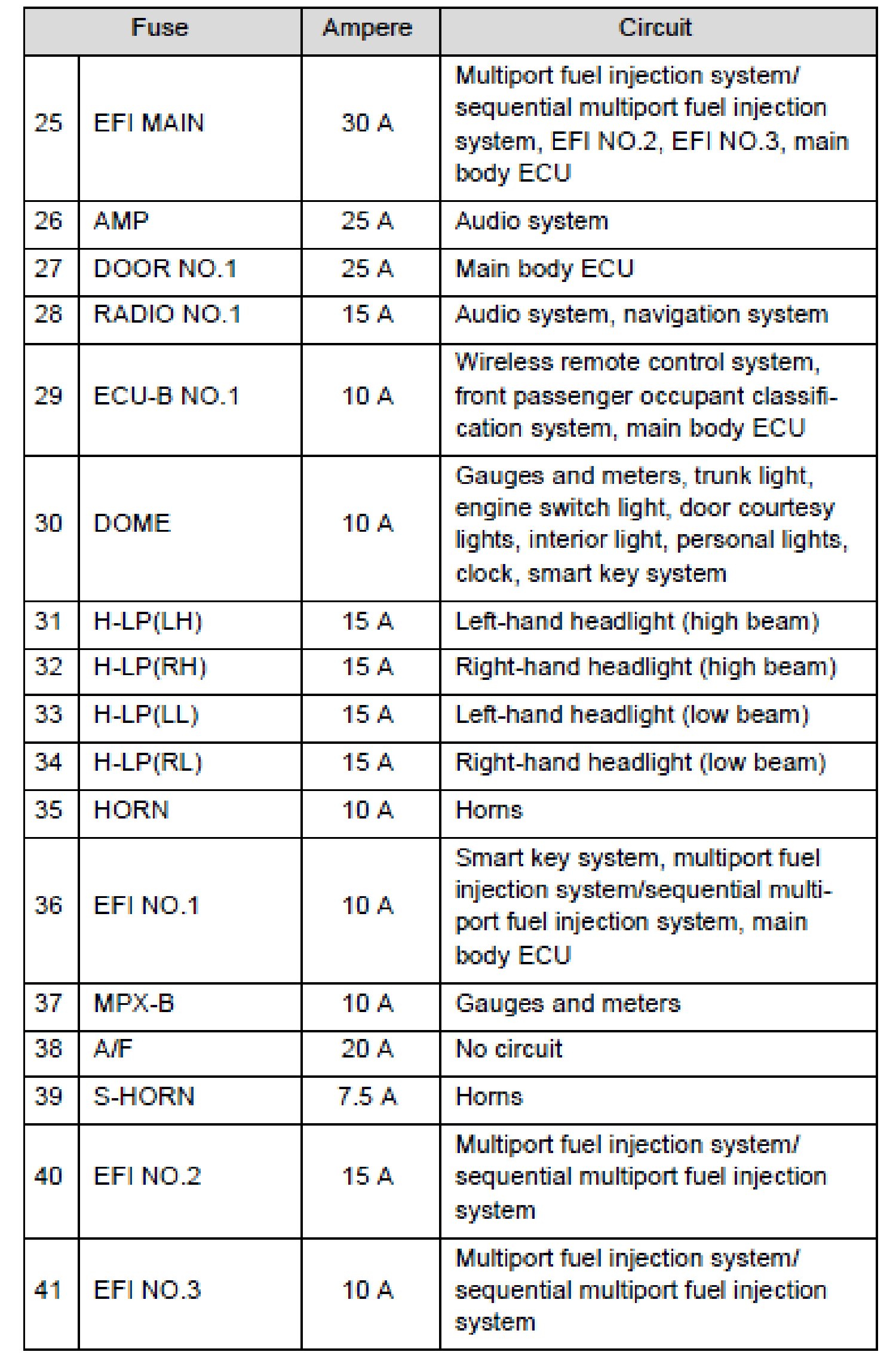

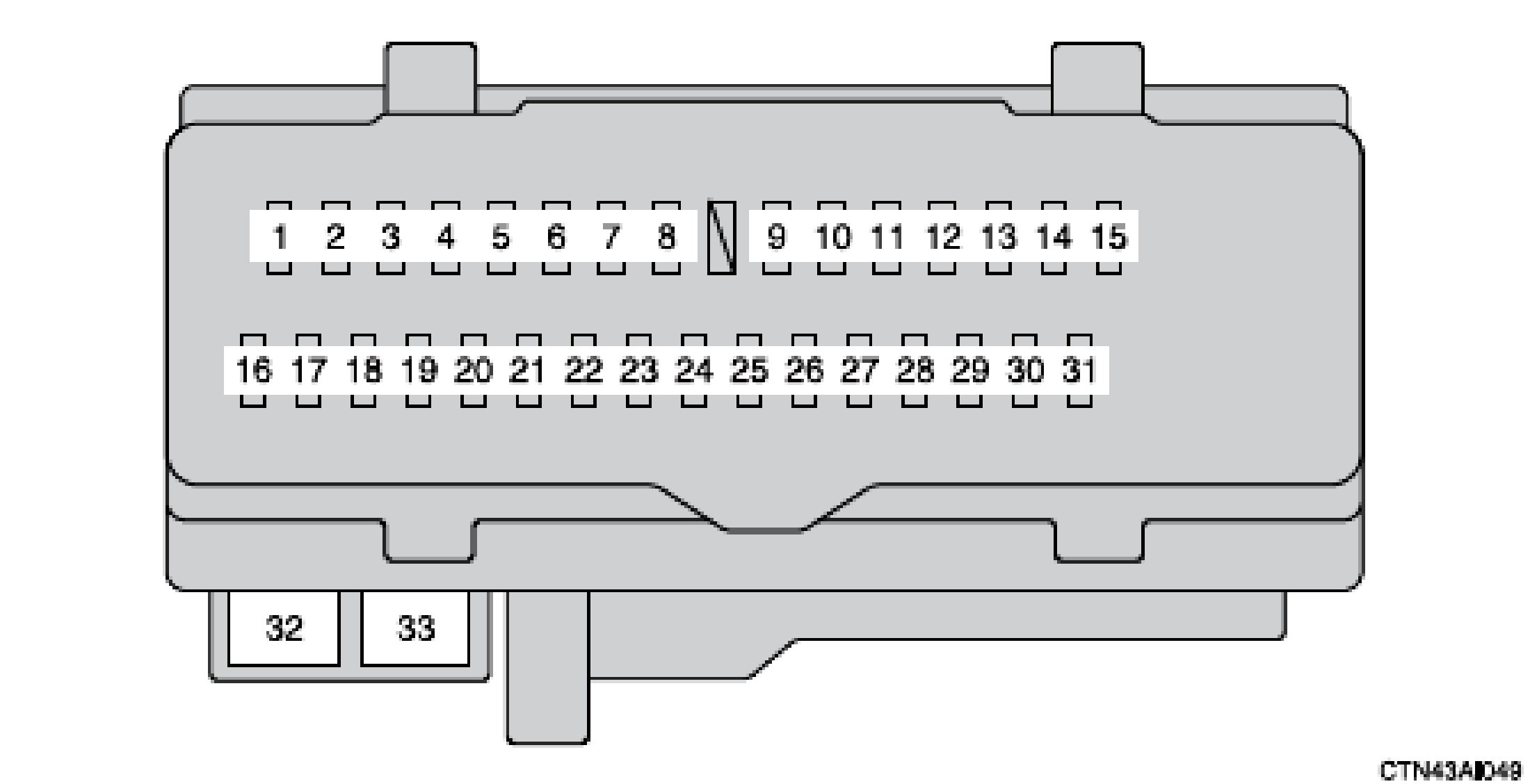

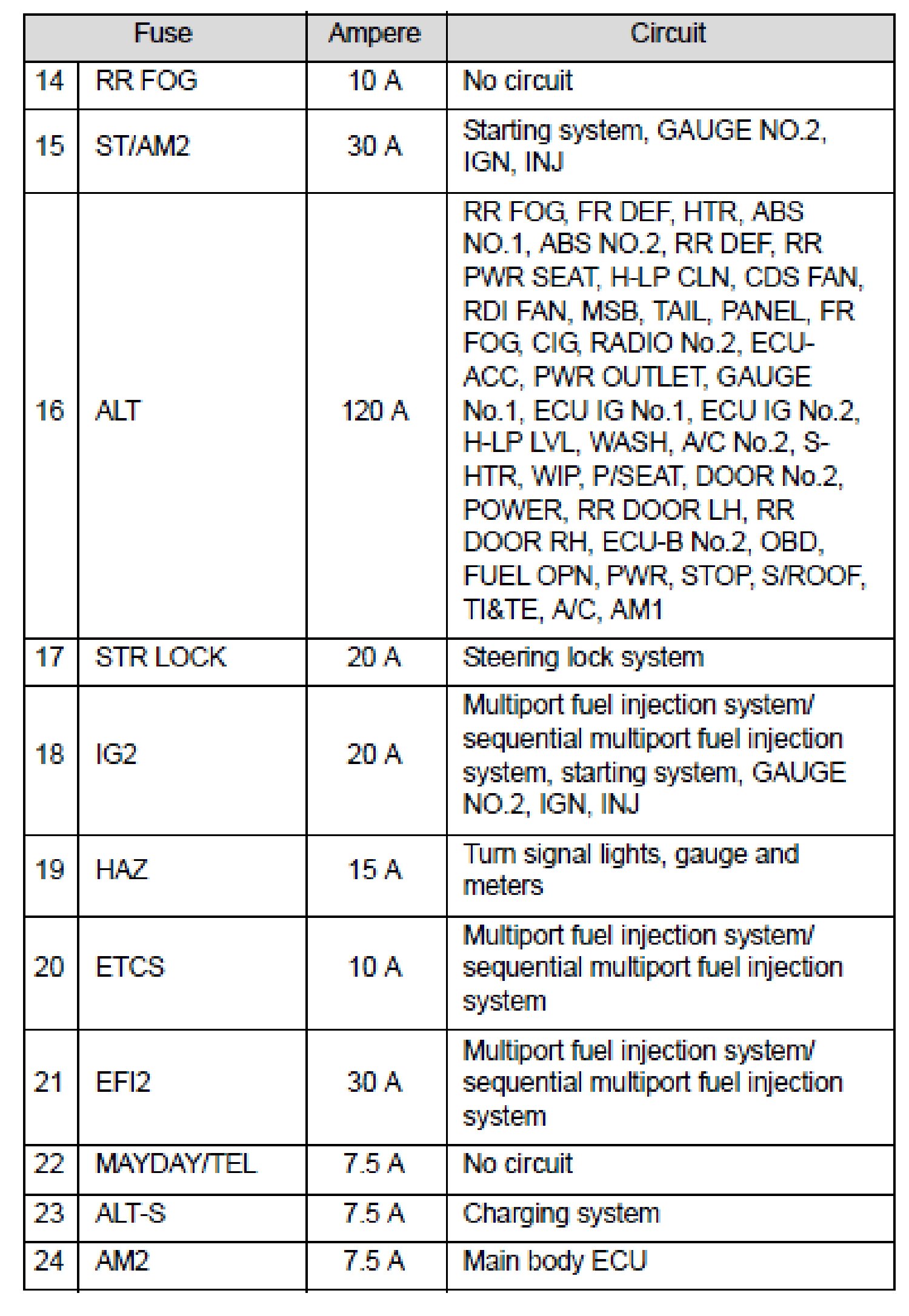

Fuse Location Part 1:

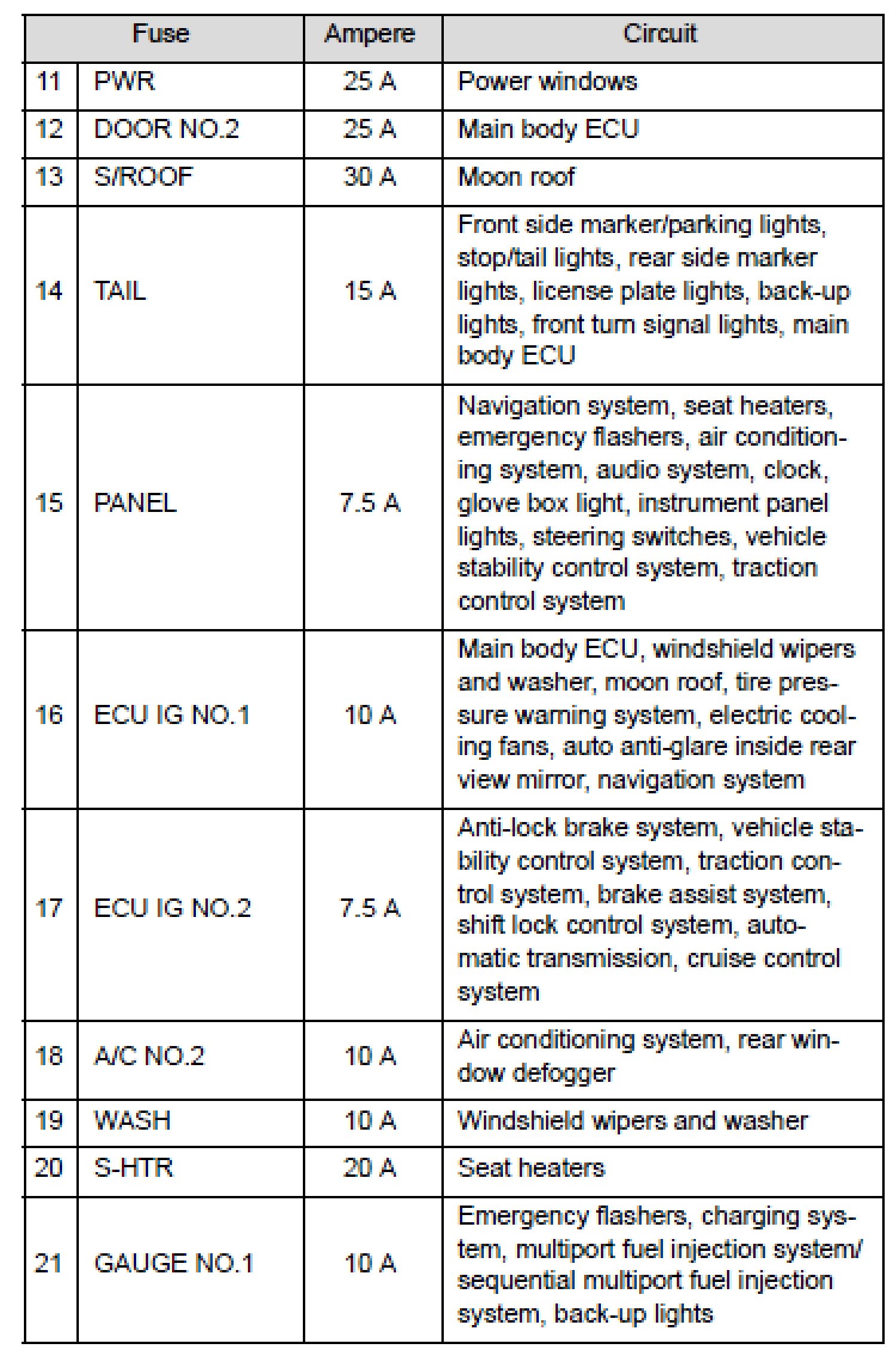

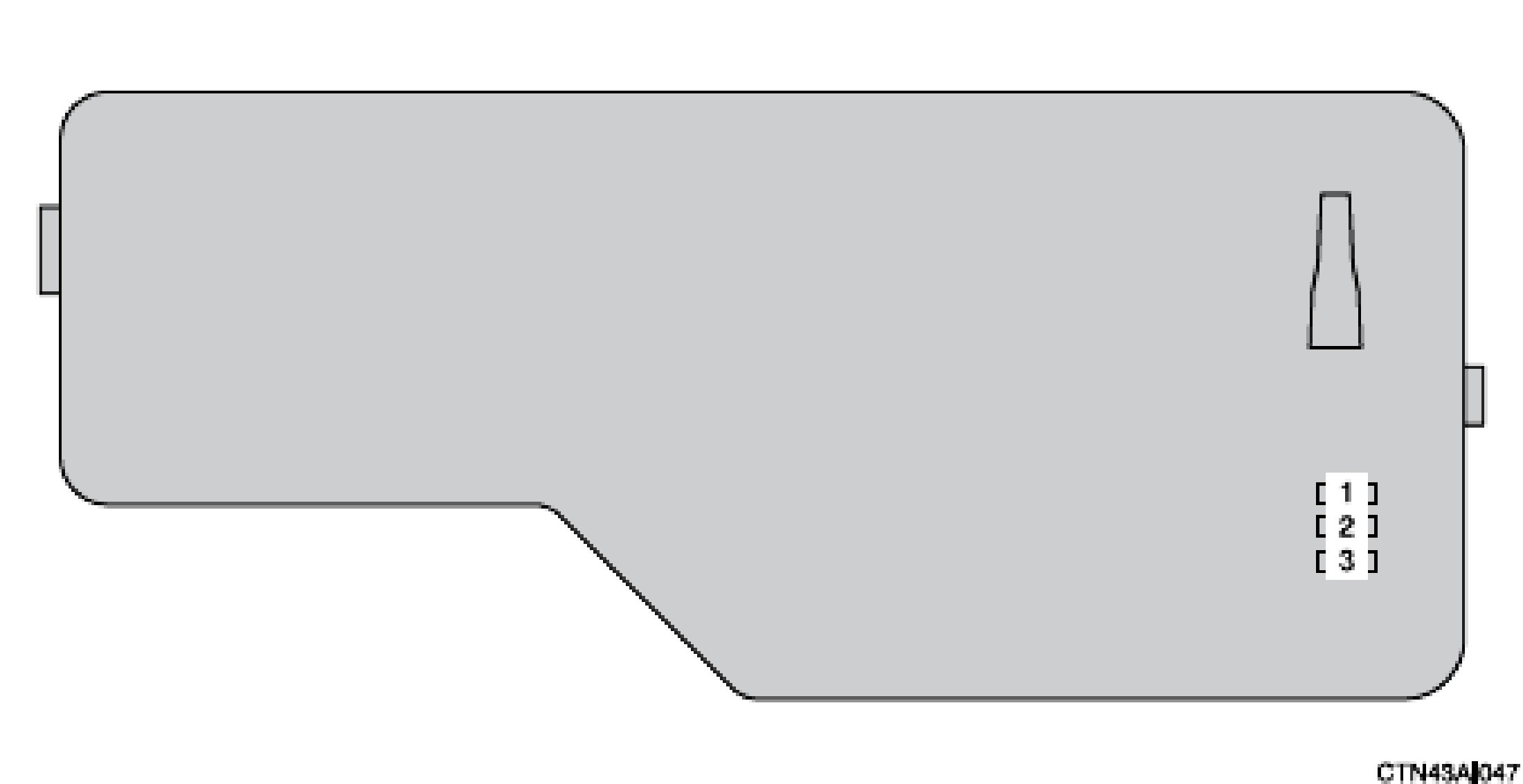

Fuse Location Part 2:

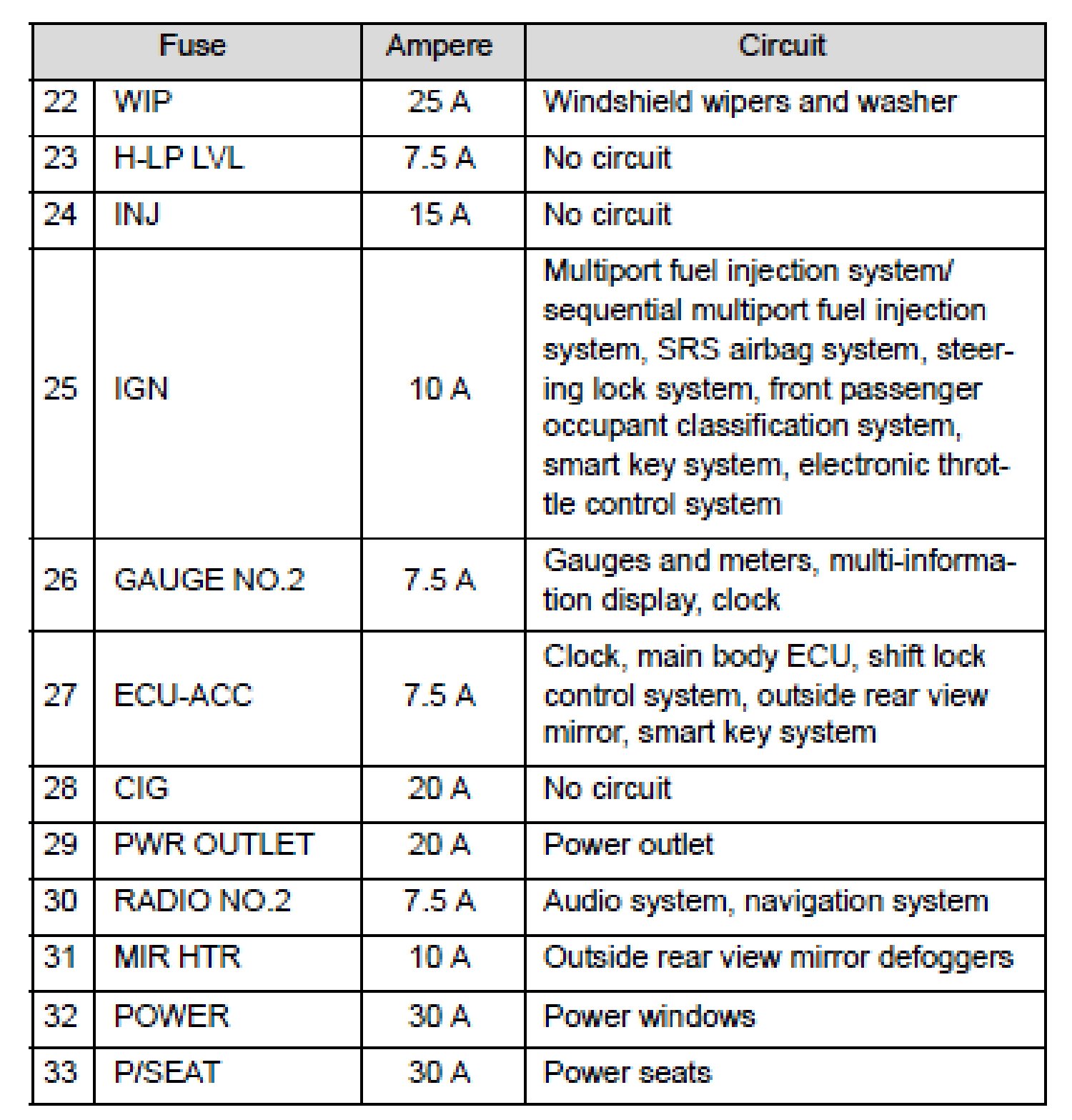

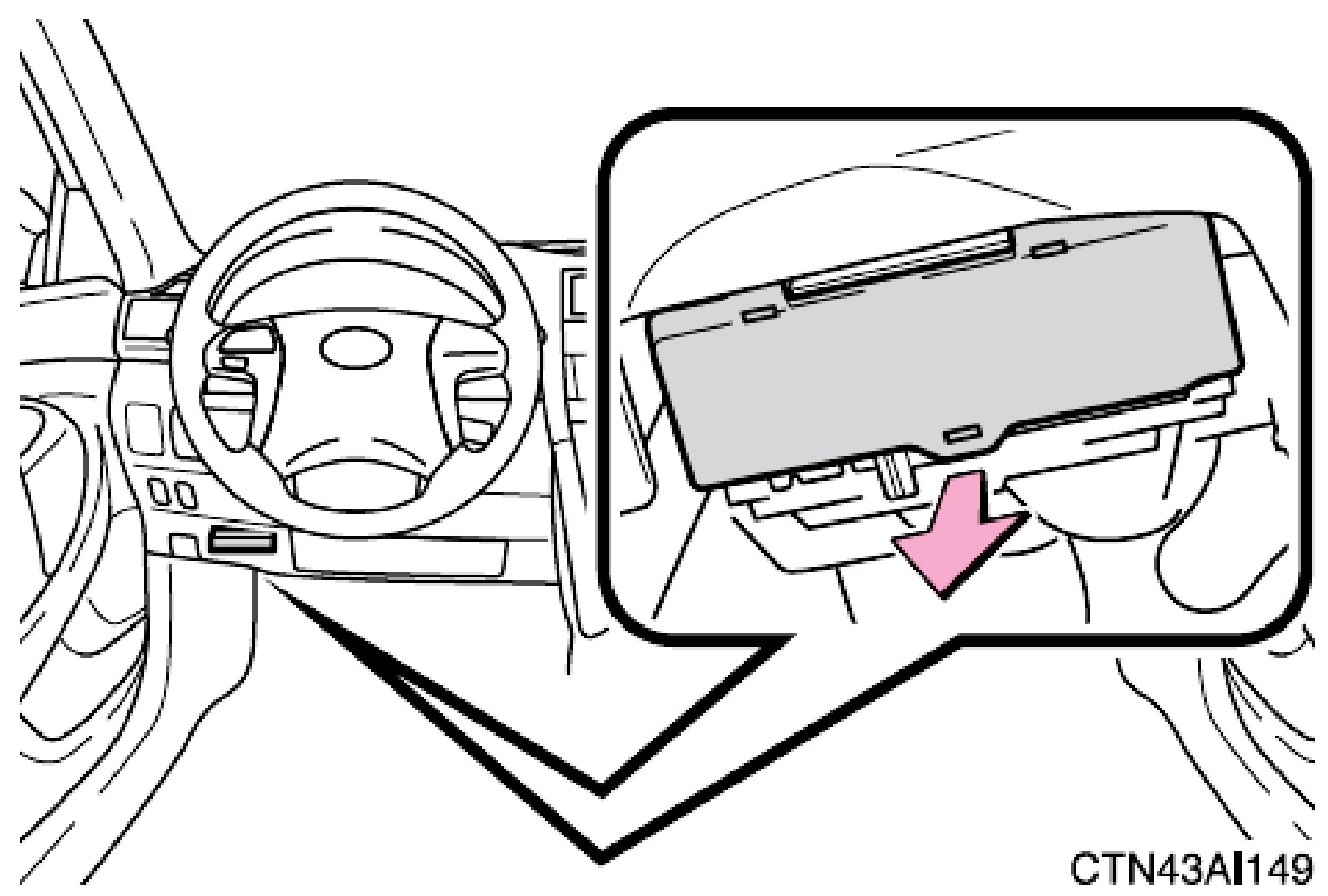

Left Side Instrument Panel:

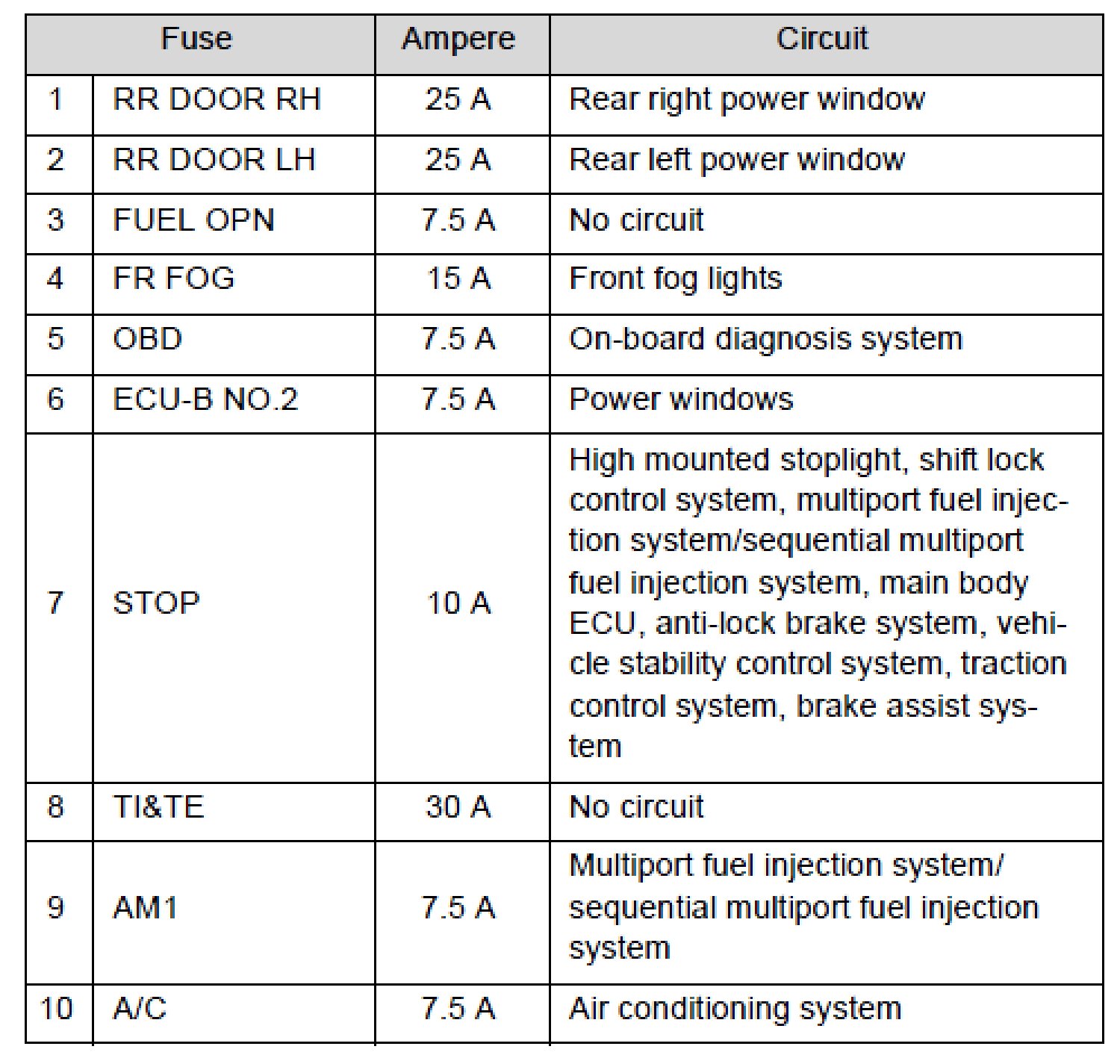

Fuse Location:
