Service Data





SERVICE SPECIFICATIONS: POWER STEERING: SERVICE DATA

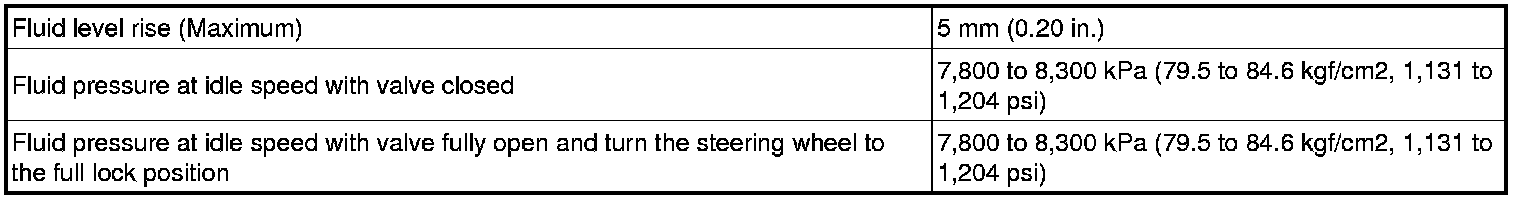

Power Steering Fluid





Steering Wheel

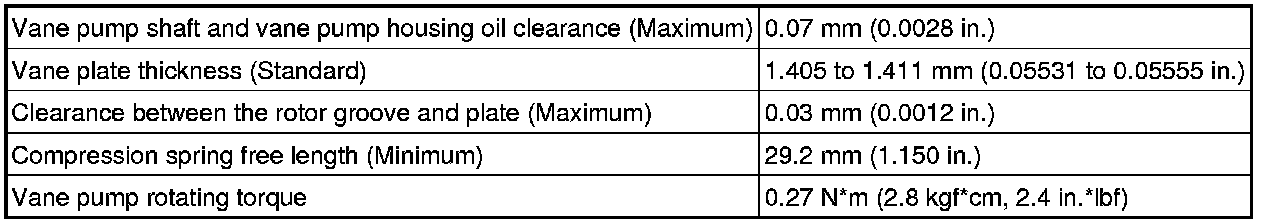

Vane Pump (for 2AR-FE)





Vane Pump (for 2GR-FE)

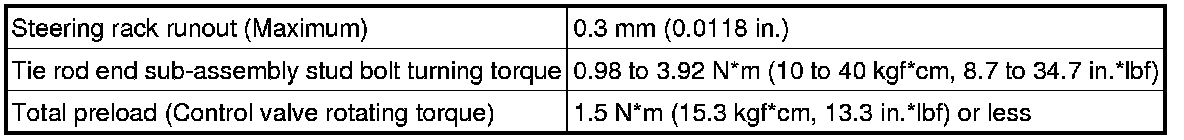

Power Steering Link
