Torque Specifications





SERVICE SPECIFICATIONS: EB62 MANUAL TRANSAXLE: TORQUE SPECIFICATIONS

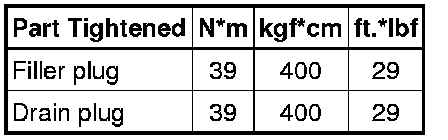

Manual Transaxle Oil





Shift Lever Assembly





Transmission Control Cable

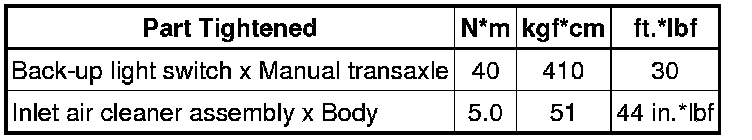

Back-up Light Switch

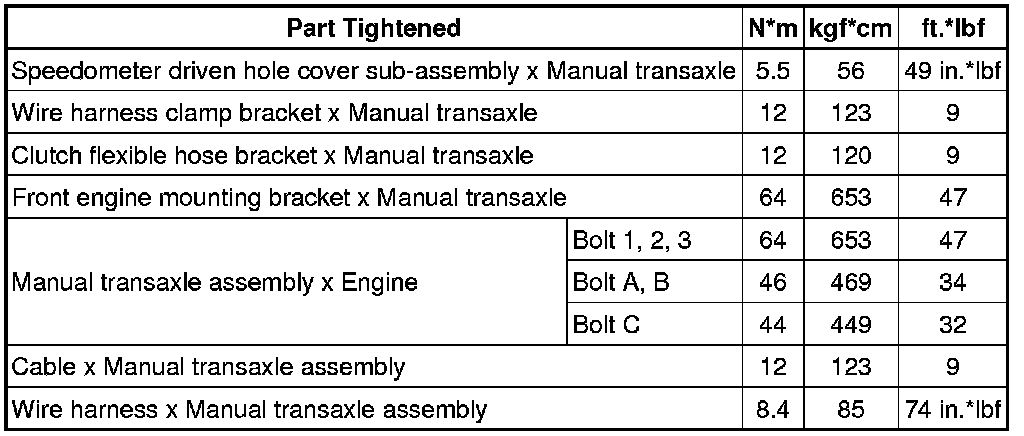

Manual Transaxle Assembly

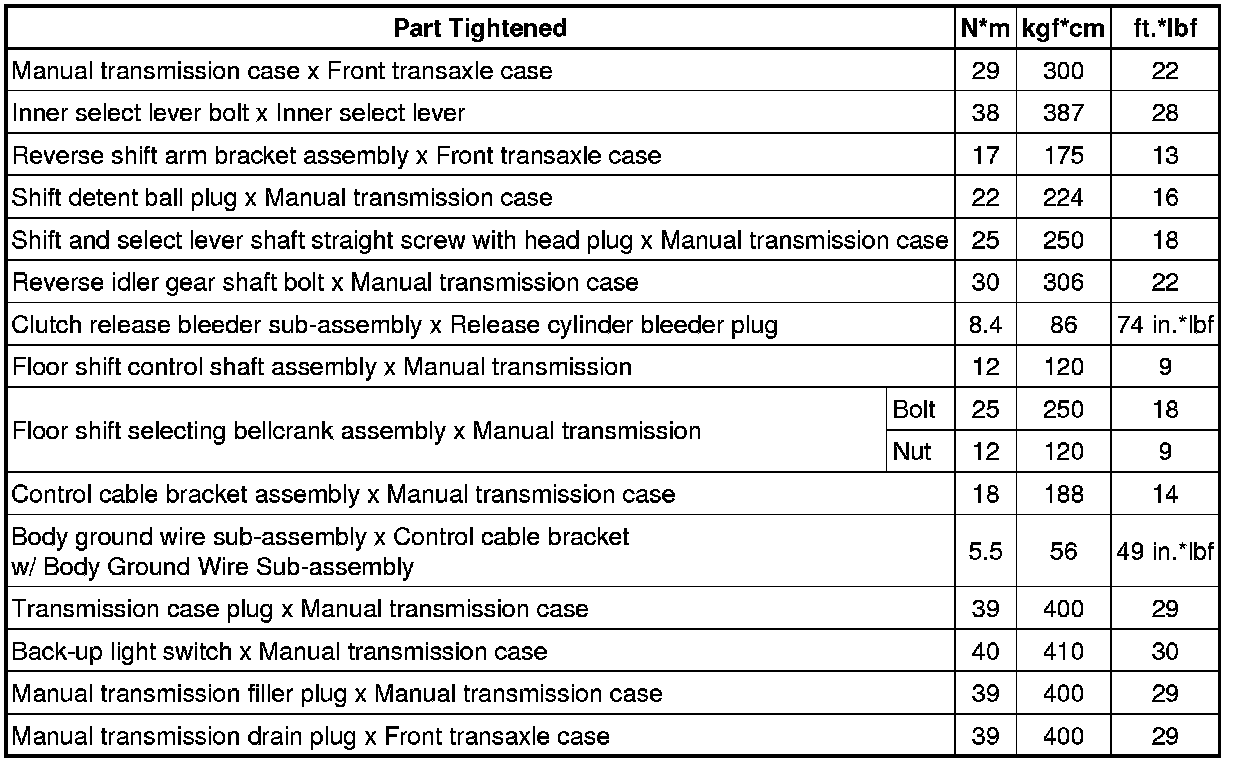

Manual Transaxle Unit





Differential Case
