Torque Specifications





SERVICE SPECIFICATIONS: 2AR-FE ENGINE MECHANICAL: TORQUE SPECIFICATIONS

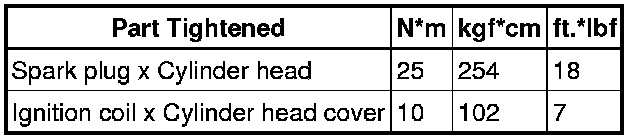

ENGINE

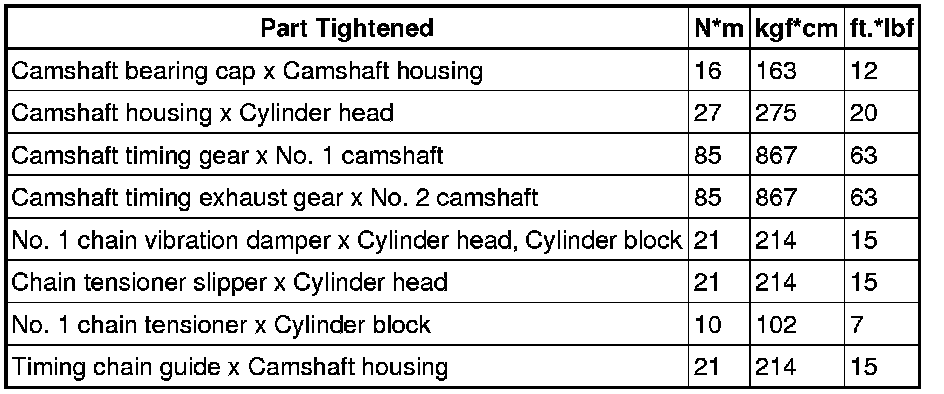

CAMSHAFT

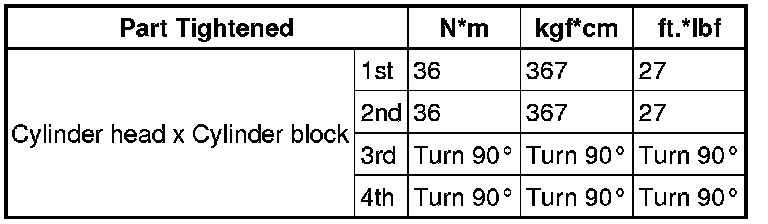

CYLINDER HEAD GASKET

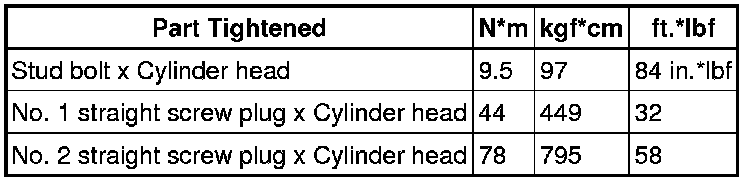

CYLINDER HEAD

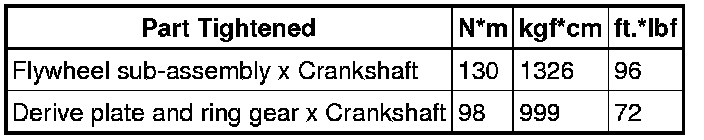

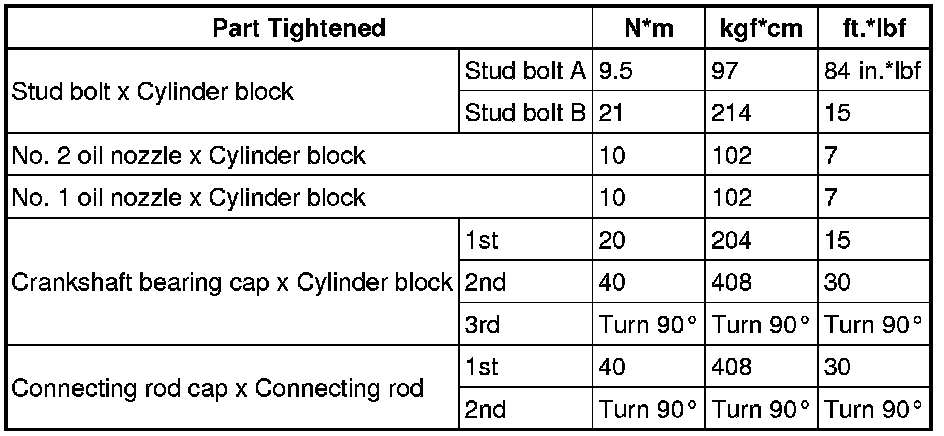

CYLINDER BLOCK





FRONT ENGINE OIL SEAL





REAR ENGINE OIL SEAL

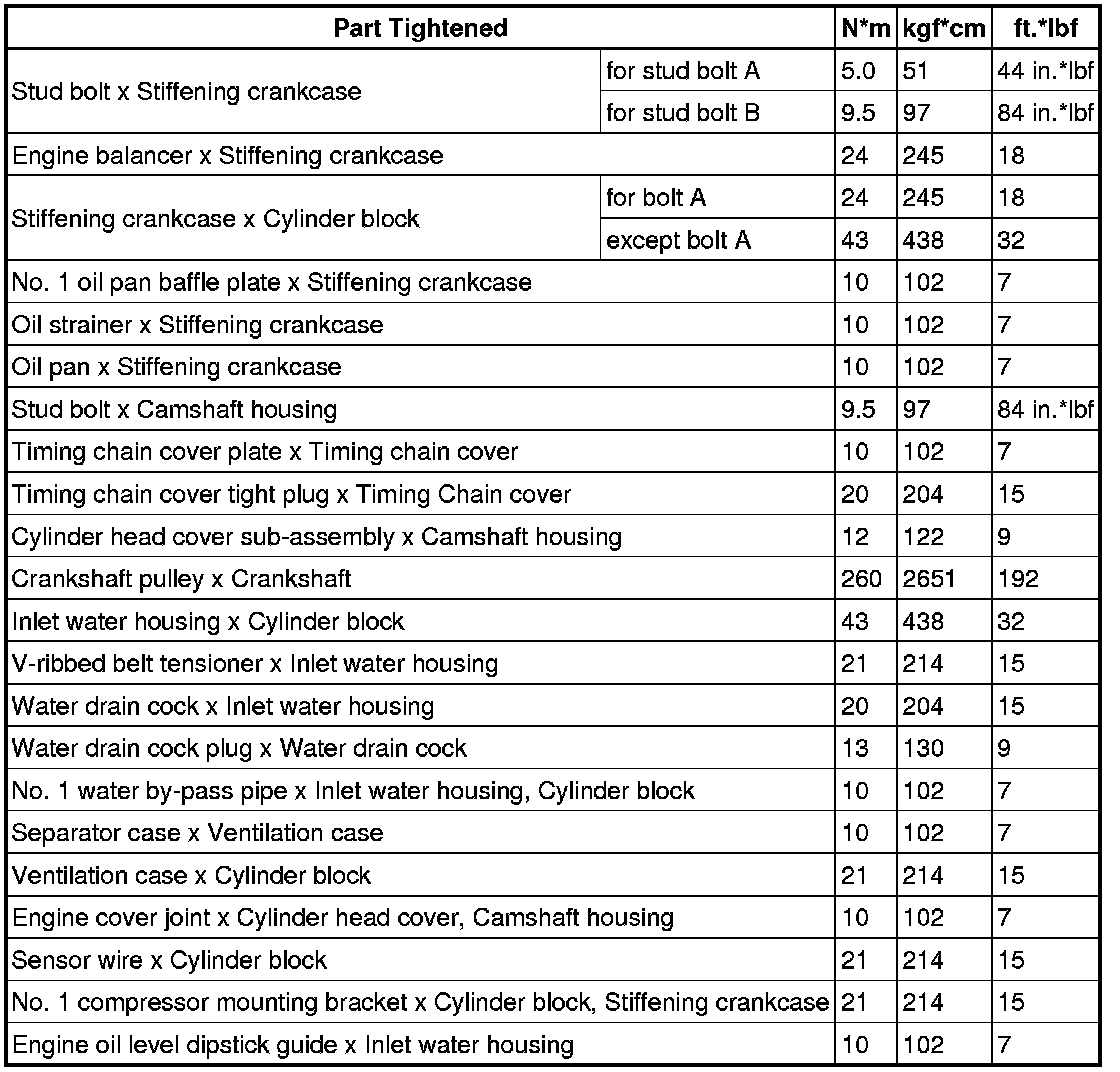

ENGINE ASSEMBLY





ENGINE UNIT
