Alignment

SERVICE SPECIFICATIONS: SUSPENSION: SERVICE DATA

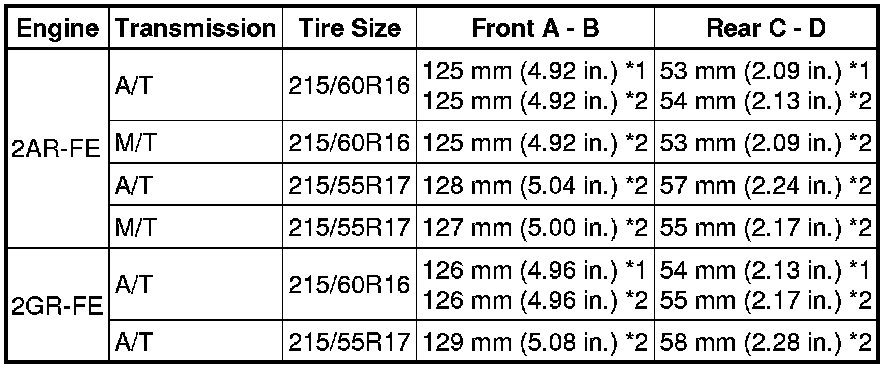

Vehicle Height for USA and Canada (Unloaded Vehicle)





*1: for TMC Made

*2: except TMC Made

Measuring points:





* A: Ground clearance of front wheel center

* B: Ground clearance of lower suspension arm No. 2 bushing set bolt center

* C: Ground clearance of rear wheel center

* D: Ground clearance of strut rod set bolt center

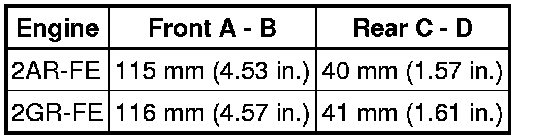

Vehicle Height for Mexico (Unloaded Vehicle)

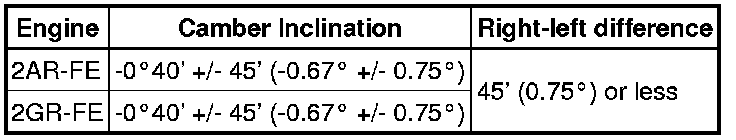

Front Camber for USA and Canada (Unloaded Vehicle)





Front Camber for Mexico (Unloaded Vehicle)

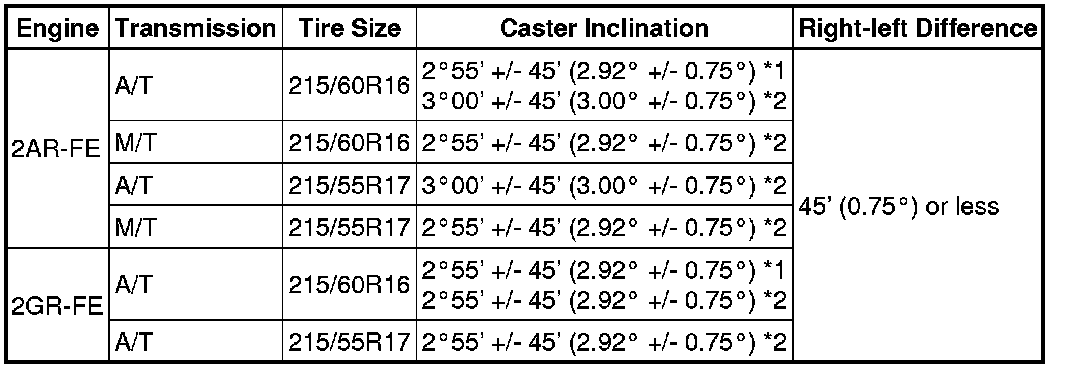

Front Caster for USA and Canada (Unloaded Vehicle)





*1: for TMC Made

*2: except TMC Made

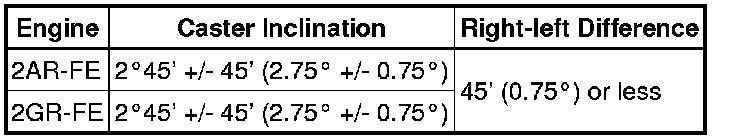

Front Caster for Mexico (Unloaded Vehicle)

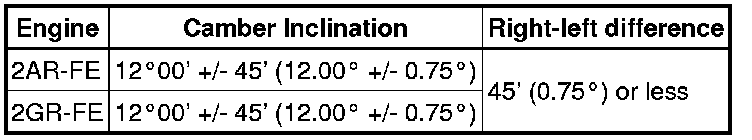

Front Steering Axis Inclination for USA and Canada (Unloaded Vehicle)





Front Steering Axis Inclination for Mexico (Unloaded Vehicle)

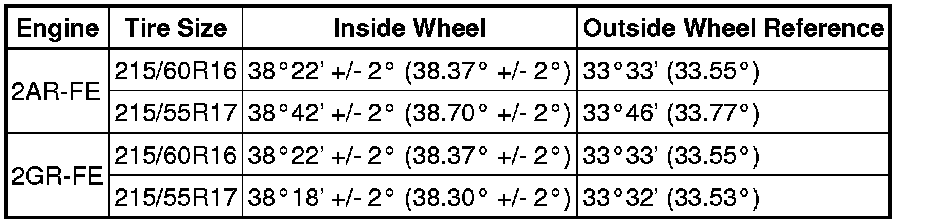

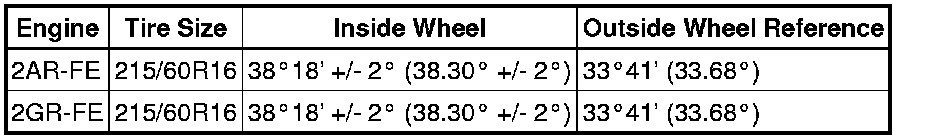

Front Wheel Turning Angle for USA and Canada (Unloaded Vehicle)





Front Wheel Turning Angle for Mexico (Unloaded Vehicle)

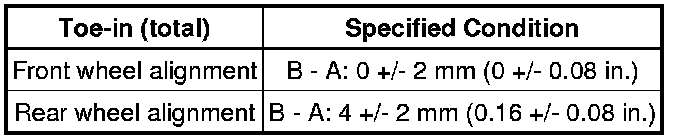

Toe-in (Unloaded Vehicle)

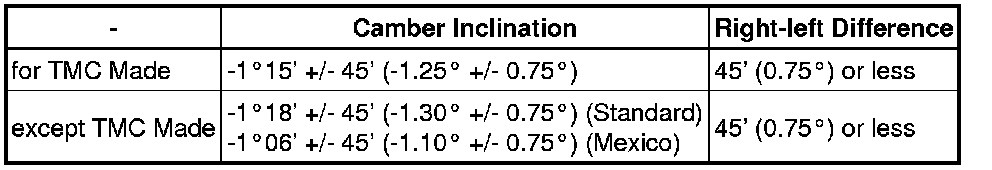

Rear Camber (Unloaded Vehicle)

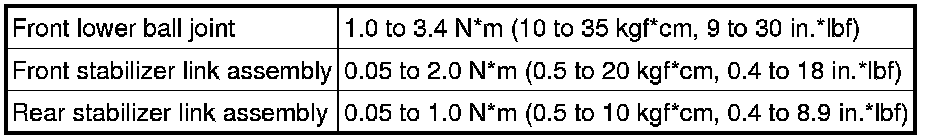

Turning Torque
