Back Door Courtesy Switch

LIGHTING: BACK DOOR COURTESY SWITCH: INSPECTION

1. INSPECT LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

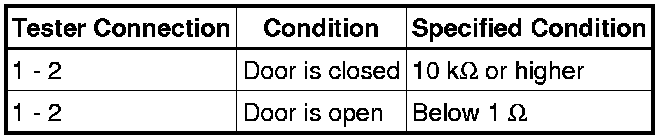

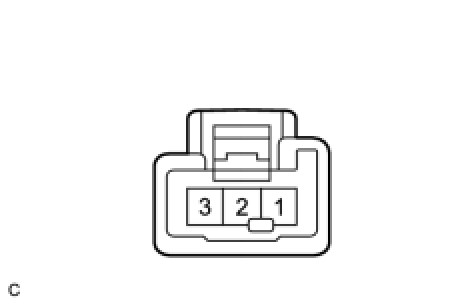

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





If the result is not as specified, replace the luggage compartment door lock assembly.
