Removal

LIGHTING: FRONT DOOR COURTESY SWITCH: REMOVAL

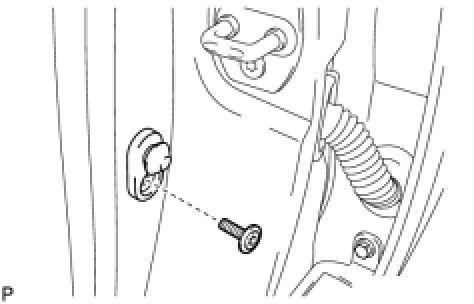

1. REMOVE FRONT DOOR COURTESY SWITCH ASSEMBLY

(a) Using a "TORX" socket wrench (T30), remove the "TORX" bolt.





(b) Disconnect the connector and remove the front door courtesy switch assembly.
