Removal

AIR CONDITIONING: ROOM TEMPERATURE SENSOR: REMOVAL

1. REMOVE FRONT DOOR SCUFF PLATE LH Removal

2. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH Removal

3. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH Removal

4. REMOVE ROOM TEMPERATURE SENSOR

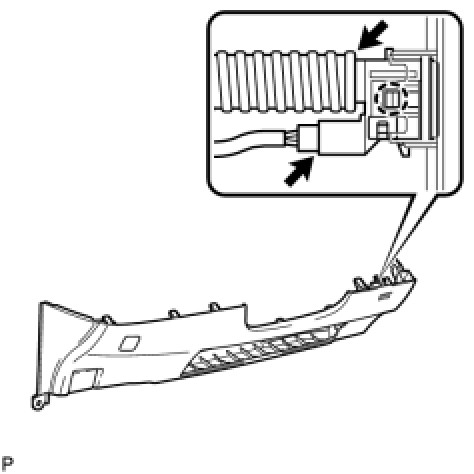

(a) Disconnect the connector and air hose.





(b) Release the claw and remove the sensor.
