Installation

AIR CONDITIONING: AMBIENT TEMPERATURE SENSOR: INSTALLATION

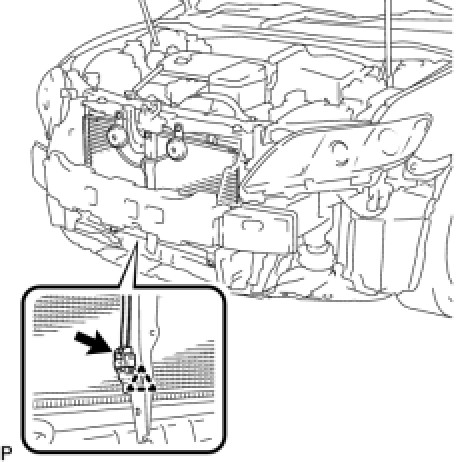

1. INSTALL AMBIENT TEMPERATURE SENSOR

(a) Install the ambient temperature sensor with the clamp.





(b) Connect the connector.

2. INSTALL FRONT BUMPER ASSEMBLY Installation

3. INSTALL COOL AIR INTAKE DUCT SEAL

4. VEHICLE PREPARATION FOR FOG LIGHT AIMING (w/ Fog Light) Adjustments

5. PREPARATION FOR FOG LIGHT AIMING (w/ Fog Light) Adjustments

6. FOG LIGHT AIMING INSPECTION (w/ Fog Light) Adjustments

7. FOG LIGHT AIMING ADJUSTMENT (w/ Fog Light) Adjustments
