Cruise Control Switch: Testing and Inspection

CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH: INSPECTION

1. INSPECT CRUISE CONTROL MAIN SWITCH

(a) Remove the cruise control main switch

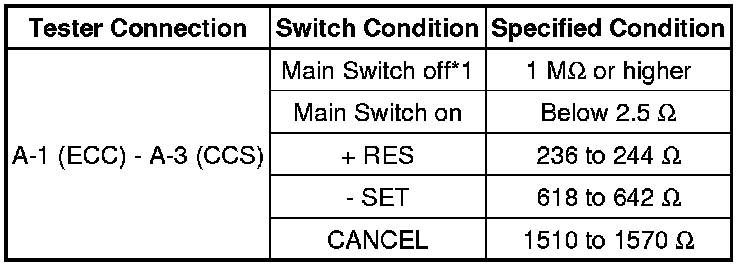

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





*1: Lever is in the neutral position

If the result is not as specified, replace the cruise control main switch
