Removal

BRAKE CONTROL: REAR SPEED SENSOR: REMOVAL

HINT
* Use the same procedure for the RH side and LH side.
* The procedure listed below is for the LH side.
* The skid control sensor is a component of the rear axle hub and bearing assembly. If the skid control sensor needs to be replaced, replace the rear axle hub and bearing assembly.
* If the sensor rotor needs to be replaced, replace it together with the rear axle hub and bearing assembly.

1. REMOVE REAR WHEEL

2. DISCONNECT SKID CONTROL SENSOR WIRE

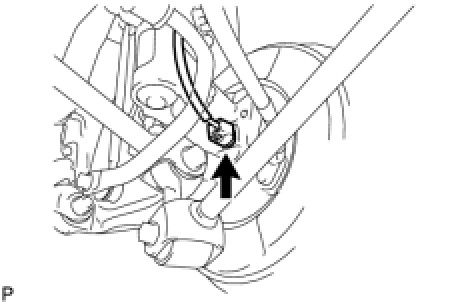

(a) Disconnect the connector from the skid control sensor.

NOTICE:
Be careful not to damage the speed sensor.





3. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY Disassembly

4. REMOVE REAR DISC Disassembly

5. REMOVE REAR AXLE HUB AND BEARING ASSEMBLY WITH SKID CONTROL SENSOR

(a) Remove the rear axle hub and bearing assembly with skid control sensor Removal.

HINT
* The skid control sensor is a component of the rear axle hub and bearing assembly. If the skid control sensor needs to be replaced, replace the rear axle hub and bearing assembly.
* If the sensor rotor needs to be replaced, replace it together with the rear axle hub and bearing assembly.
