Removal

BRAKE CONTROL: FRONT SPEED SENSOR: REMOVAL

HINT
* Use the same procedures for the RH side and LH side.
* The procedures listed below are for the LH side.

1. REMOVE FRONT WHEEL

2. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH Removal

3. REMOVE FRONT FENDER LINER Removal

4. REMOVE FRONT SPEED SENSOR

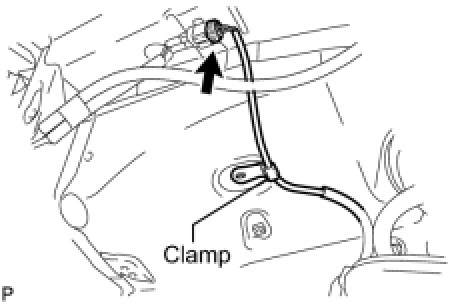

(a) Disconnect the front speed sensor connector and clamp.

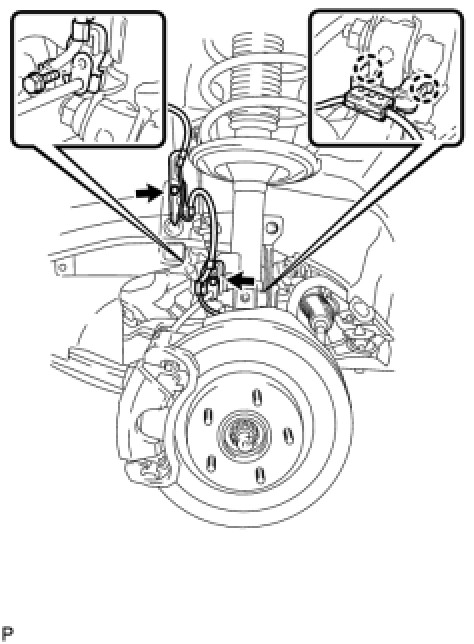

(b) Remove the 2 bolts from the body and the shock absorber assembly.





(c) Disengage the 2 claws from the steering knuckle and body.

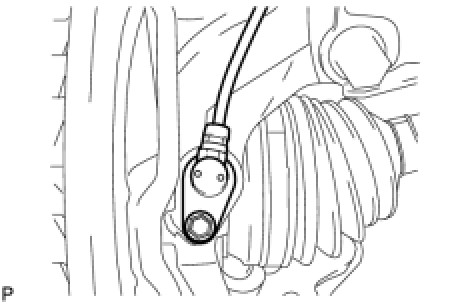

(d) Remove the bolt and the front speed sensor.





NOTICE:
* Prevent foreign matter from attaching to the sensor tip.
* Clean the installation hole and the surface for the speed sensor every time the speed sensor is removed.
