Home >> Toyota >> 2011 >> Camry L4-2.5L (2AR-FE) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Brakes and Traction Control >> Wheel Speed Sensor >> Locations >> Vehicle Stability Control System (for ADVICS Made)

Vehicle Stability Control System (for ADVICS Made)

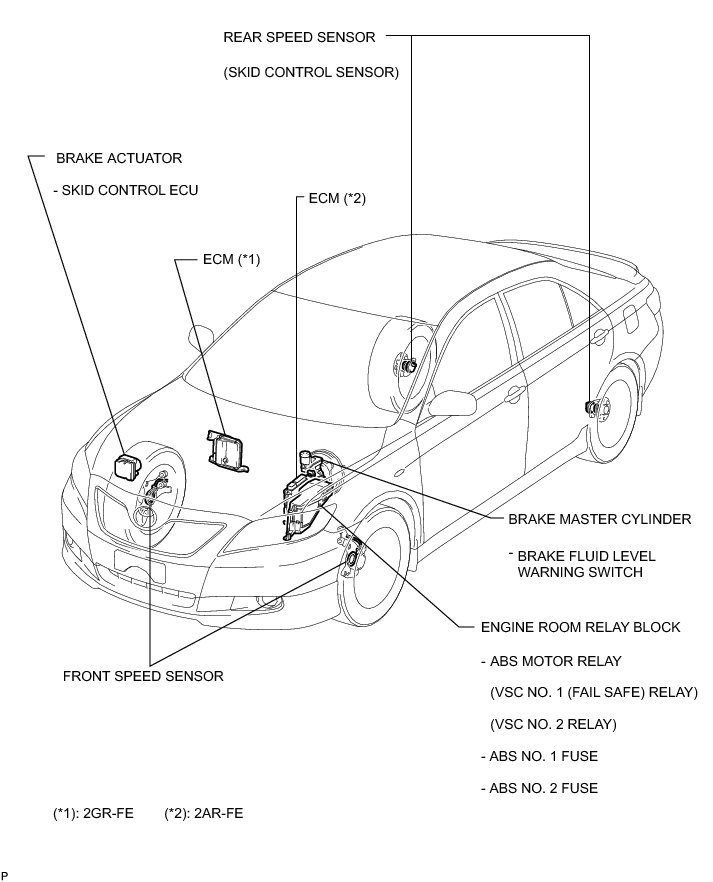

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM (for ADVICS Made): PARTS LOCATION
