Sunroof / Moonroof Switch: Testing and Inspection

SLIDING ROOF: SLIDING ROOF SWITCH ASSEMBLY: ON-VEHICLE INSPECTION

1. INSPECT ROOF CONSOLE BOX ASSEMBLY

(a) Remove the roof console box assembly.

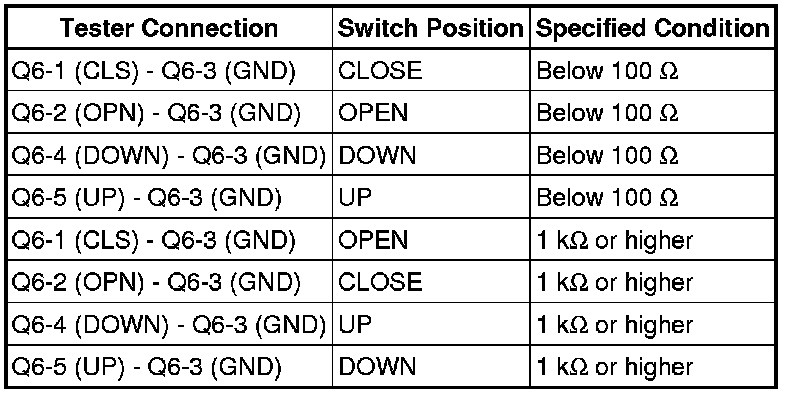

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





If the result is not as specified, replace the roof console box assembly.
