Installation

SEAT: SEAT HEATER SWITCH: INSTALLATION

1. INSTALL SEAT HEATER SWITCH

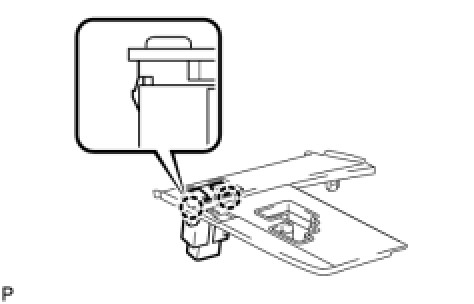

(a) Engage the 2 claws and install the seat heater switch.





2. INSTALL FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY Installation

3. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH Installation

4. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH Installation

5. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY Installation
