Front Power Seat Lumbar Switch

SEAT: FRONT POWER SEAT LUMBAR SWITCH: INSPECTION

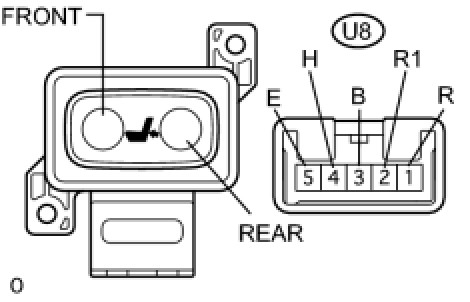

1. INSPECT FRONT POWER SEAT LUMBAR SWITCH LH

(a) Measure the resistance between the terminals when the switch is operated.

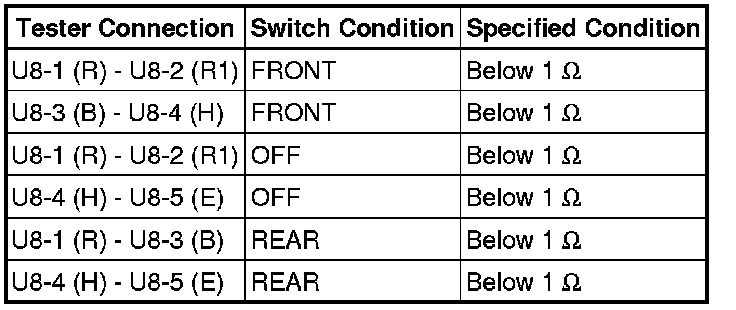

Standard resistance:





If the result is not as specified, replace the switch.
