Installation

SEAT: POWER SEAT SWITCH: INSTALLATION

1. INSTALL POWER SEAT SWITCH

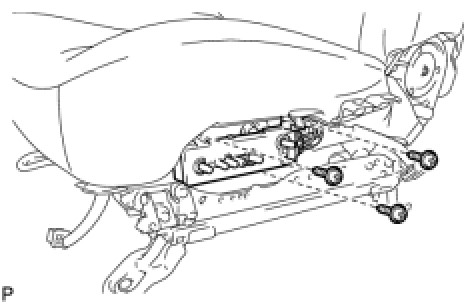

(a) Install the power seat switch with the 3 screws.





(b) Connect the connector.

2. INSTALL FRONT SEAT CUSHION SHIELD ASSEMBLY

3. INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB

4. INSTALL RECLINING POWER SEAT SWITCH KNOB

5. INSTALL FRONT SEAT ASSEMBLY Installation

6. INSTALL INNER SEAT TRACK BRACKET COVER Installation

7. INSTALL SEAT TRACK COVER Installation
