Removal

SEAT: FRONT POWER SEAT LUMBAR SWITCH: REMOVAL

1. REMOVE FRONT SEAT HEADREST ASSEMBLY

2. REMOVE SEAT TRACK COVER Removal

3. REMOVE INNER SEAT TRACK BRACKET COVER Removal

4. REMOVE FRONT SEAT ASSEMBLY Removal

5. REMOVE RECLINING POWER SEAT SWITCH KNOB Disassembly

6. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB Disassembly

7. REMOVE FRONT SEAT CUSHION SHIELD ASSEMBLY Disassembly

8. REMOVE FRONT POWER SEAT LUMBAR SWITCH

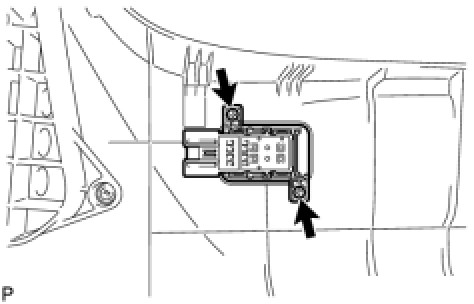

(a) Remove the 2 screws and front power seat lumbar switch.
