Steering Pad Switch - 4 Spoke Model

METER: STEERING PAD SWITCH: INSPECTION

1. INSPECT STEERING PAD SWITCH

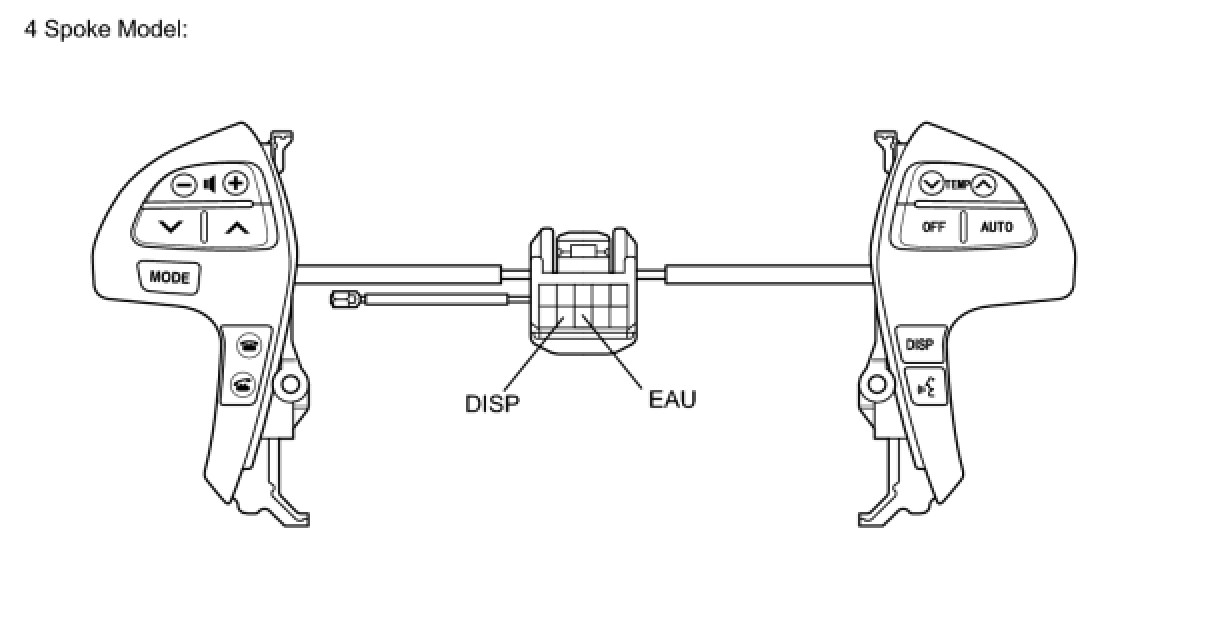

(a) Disconnect the steering pad switch connector.

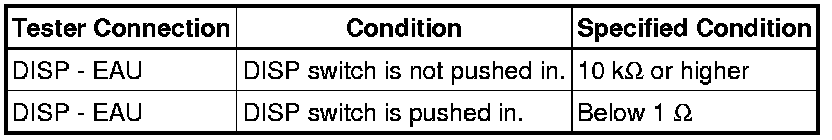

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





HINT
* This inspection is needed only for 4 spoke model steering pad switch.
* If the value is not as specified, replace the steering pad switch.
