Steering Pad Switch - 3 Spoke Model

AUDIO / VISUAL: STEERING PAD SWITCH: INSPECTION

1. INSPECT STEERING PAD SWITCH

(a) Disconnect the steering pad switch assembly connector.

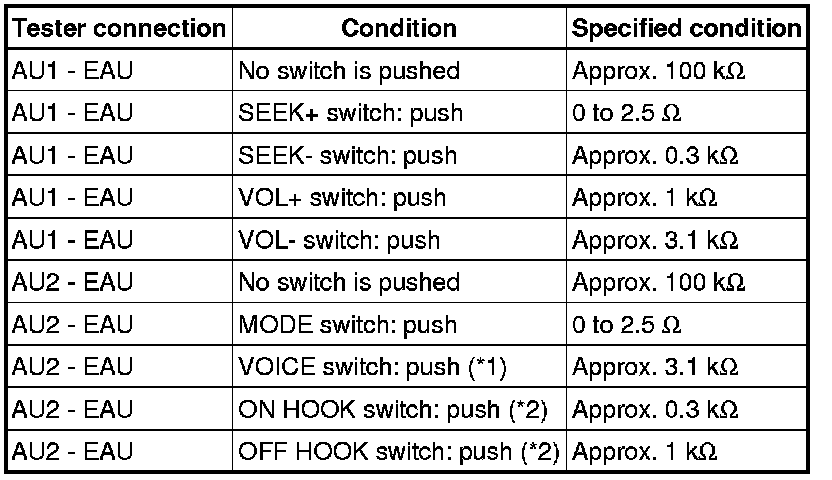

(b) Measure the resistance according to the values in the table below.

Standard resistance:





*1: with Navigation System

*2: with "Bluetooth" Module

If the result is not as specified, replace the steering pad switch.
