AUDIO / VISUAL: STEERING PAD SWITCH: INSTALLATION

1. INSTALL STEERING PAD SWITCH ASSEMBLY (for 4 Spoke)

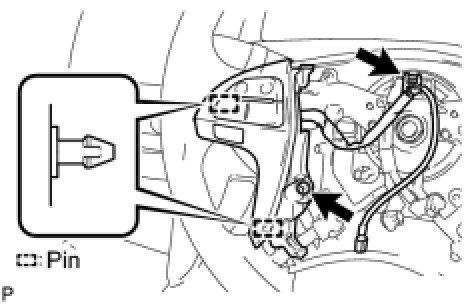

(a) Engage the 2 pins and install the steering pad switch assembly.





(b) Install the screw.

Torque : 2.4 Nm (24 kgf-cm, 21 in-lbf)

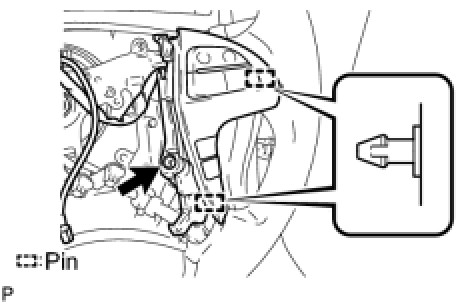

(c) Engage the 2 pins and install the steering pad switch assembly.





(d) Install the screw.

Torque : 2.4 Nm (24 kgf-cm, 21 in-lbf)

(e) Connect the connector to the spiral cable.

2. INSTALL STEERING PAD SWITCH LH (for 4 Spoke)

(a) Engage the 2 pins and install the steering pad switch LH.





(b) Install the screw.

Torque : 2.4 Nm (24 kgf-cm, 21 in-lbf)

(c) Connect the connector to the spiral cable.

3. INSTALL STEERING PAD SWITCH ASSEMBLY (for 3 Spoke)

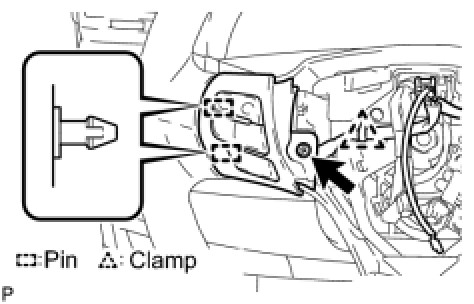

(a) Engage the 2 pins and install the steering pad switch assembly.





(b) Install the screw and engage the clamp.

Torque : 2.4 Nm (24 kgf-cm, 21 in-lbf)

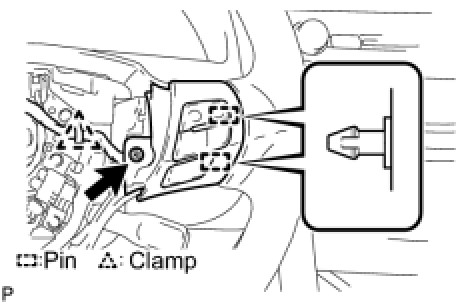

(c) Engage the 2 pins and install the steering pad switch assembly.





(d) Install the screw and engage the clamp.

Torque : 2.4 Nm (24 kgf-cm, 21 in-lbf)

(e) Connect the connector to the spiral cable.

4. INSTALL STEERING PAD SWITCH LH (for 3 Spoke)

(a) Engage the 2 pins and install the steering pad switch LH.





(b) Install the screw and engage the clamp.

Torque : 2.4 Nm (24 kgf-cm, 21 in-lbf)

(c) Connect the connector to the spiral cable.

5. INSTALL STEERING PAD Installation

6. INSTALL NO. 3 LOWER STEERING WHEEL COVER Installation

7. INSTALL NO. 2 LOWER STEERING WHEEL COVER Installation

8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

9. INSPECT SRS WARNING LIGHT
