SUPPLEMENTAL RESTRAINT SYSTEM: SEAT POSITION SENSOR: INSTALLATION

1. INSTALL SEAT POSITION SENSOR (for Power Seat)

(a) Check that the ignition switch is off.

(b) Check that the negative battery (-) cable is disconnected.

CAUTION:
Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.

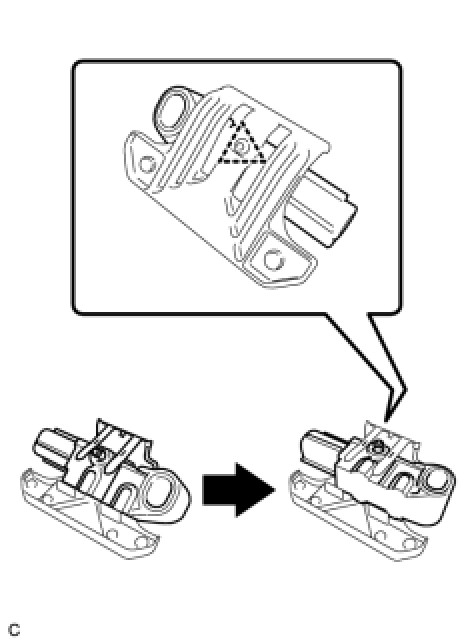

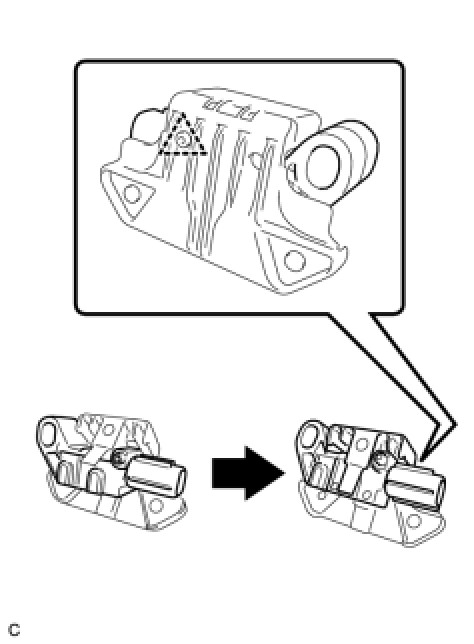

(c) Engage the pin and install the seat position sensor to the seat slide position sensor protector as shown in the illustration.

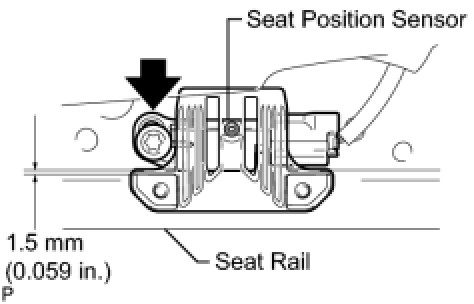

(d) Using a feeler gauge 1.5 mm (0.059 in.), temporarily install the seat position sensor.

NOTICE:
* If the seat position sensor has been dropped, or there are any cracks, dents or other defects in the case or connector, replace the seat position sensor with a new one.
* When installing the seat position sensor, be careful that the SRS wiring does not interfere with other parts and that it is not pinched between other parts.

HINT
Be sure that a clearance between the seat position sensor and the seat rail is within 1.1 mm (0.043 in.) to 1.9 mm (0.075 in.).

(e) Using a "torx" socket wrench (T30), tighten the "torx" screw to install the seat position sensor.

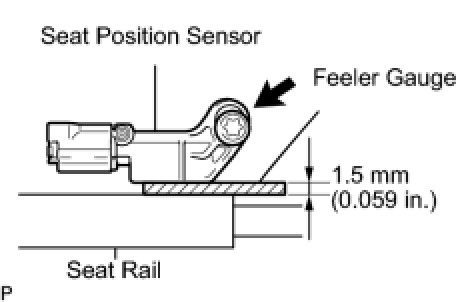

(d) Using a feeler gauge 1.5 mm (0.059 in.), temporarily install the seat position sensor.

Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf)

(f) Make sure that a clearance between the seat position sensor and the seat rail is within 1.1 mm (0.043 in.) to 1.9 mm (0.075 in.).

(g) Check that there is no looseness in the installation parts of the seat position sensor.

(h) Connect the connector.

3. INSTALL FRONT SEAT CUSHION SHIELD (for Manual Seat)

4. INSTALL RECLINING ADJUSTER RELEASE HANDLE (for Manual Seat)

5. INSTALL VERTICAL ADJUSTING HANDLE (for Manual Seat)

6. INSTALL VERTICAL ADJUSTER COVER (for Manual Seat)

7. INSTALL FRONT SEAT ASSEMBLY LH (for Power Seat) Installation

8. INSTALL FRONT SEAT ASSEMBLY LH (for Manual Seat) Installation

9. INSTALL SEAT TRACK COVER RH (for Power Seat) Installation

10. INSTALL INNER SEAT TRACK BRACKET COVER LH (for Manual Seat) Installation

11. INSTALL SEAT TRACK COVER LH (for Power Seat) Installation

12. INSTALL SEAT TRACK COVER LH (for Manual Seat) Installation

13. INSTALL FRONT SEAT HEADREST ASSEMBLY (for Power Seat)

14. INSTALL FRONT SEAT HEADREST ASSEMBLY (for Manual Seat)

15. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (for Manual Seat)

16. INSPECT POWER SEAT OPERATION (for Power Seat)

17. INSPECT SLIDE ADJUSTER LOCK (for Manual Seat)

18. INSPECT SEAT HEATER OPERATION (w/ Seat Heater System) Installation

19. INSPECT SRS WARNING LIGHT

(a) Inspect the SRS warning light Diagnosis System for TMC made, Diagnosis System except TMC made).
