Removal

SUPPLEMENTAL RESTRAINT SYSTEM: FRONT AIRBAG SENSOR: REMOVAL

HINT
* Use the same procedures for the RH side and LH side.
* The procedures listed below are for the LH side.

1. PRECAUTION

CAUTION:
Be sure to read "PRECAUTION" thoroughly before servicing Airbag System (for TMC Made) for TMC made, Airbag System (except TMC Made) except TMC made).

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.

3. REMOVE ENGINE UNDER COVER RH

4. REMOVE ENGINE UNDER COVER LH

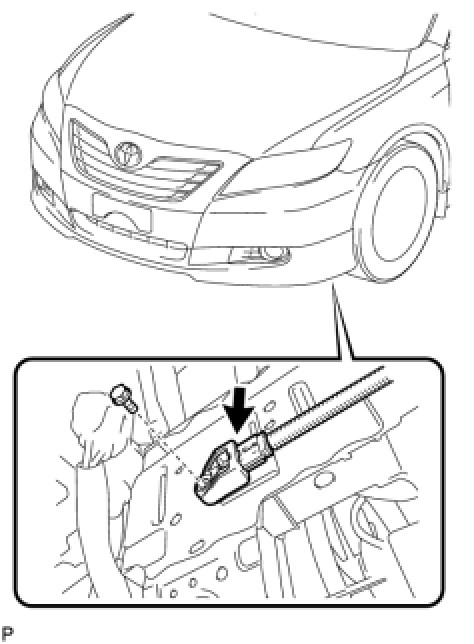

5. REMOVE FRONT AIRBAG SENSOR

(a) Remove the bolt and front airbag sensor from the body.





(b) Disconnect the connector from the front airbag sensor.
