Installation

SEAT BELT: FRONT SEAT INNER BELT ASSEMBLY: INSTALLATION

1. INSTALL FRONT SEAT INNER BELT ASSEMBLY (for Manual Seat)

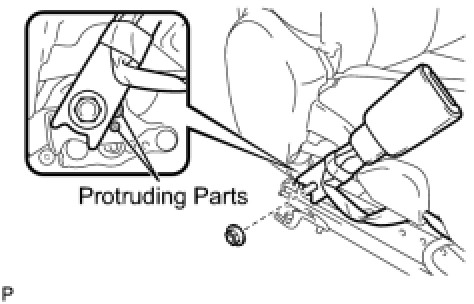

(a) Install the front seat inner belt assembly with the nut.





Torque : 42 Nm (428 kgf-cm, 31 ft-lbf)

NOTICE:
Do not allow the anchor part of the front seat inner belt assembly to overlap the protruding parts of the front seat adjuster.

(b) for Driver seat:





(1) Connect the connectors and engage the 4 clamps.

(c) for Passenger seat:

(1) Connect the connector and engage the 3 clamps.

2. INSTALL FRONT SEAT INNER BELT ASSEMBLY (for Power Seat)

(a) Install the front seat inner belt assembly with the nut.





Torque : 42 Nm (428 kgf-cm, 31 ft-lbf)

NOTICE:
Do not allow the anchor part of the front seat inner belt assembly to overlap the protruding parts of the front seat adjuster.

(b) for Driver seat:





(1) Connect the connectors and engage the 4 clamps.

(c) for Passenger seat:

(1) Connect the connector and engage the 3 clamps.

3. INSTALL FRONT SEAT ASSEMBLY (for Manual Seat) Installation

4. INSTALL INNER SEAT TRACK BRACKET COVER (for Manual Seat) Installation

5. INSTALL SEAT TRACK COVER (for Manual Seat) Installation

6. INSTALL FRONT SEAT ASSEMBLY (for Power Seat) Installation

7. INSTALL INNER SEAT TRACK BRACKET COVER (for Power Seat) Installation

8. INSTALL SEAT TRACK COVER (for Power Seat) Installation

9. INSTALL FRONT SEAT HEADREST ASSEMBLY

10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (for Manual Seat)

11. PERFORM ZERO POINT CALIBRATION AND SENSITIVITY CHECK (for Front Passenger Seat)

Programming and Relearning

12. INSPECT SLIDE ADJUSTER LOCK (for Manual Seat)

13. INSPECT FRONT SEAT ASSEMBLY (for Power Seat) Installation

14. INSPECT SRS WARNING LIGHT

for TMC Made: Diagnosis System

except TMC Made: Diagnosis System
