Seat Belt Systems: Description and Operation

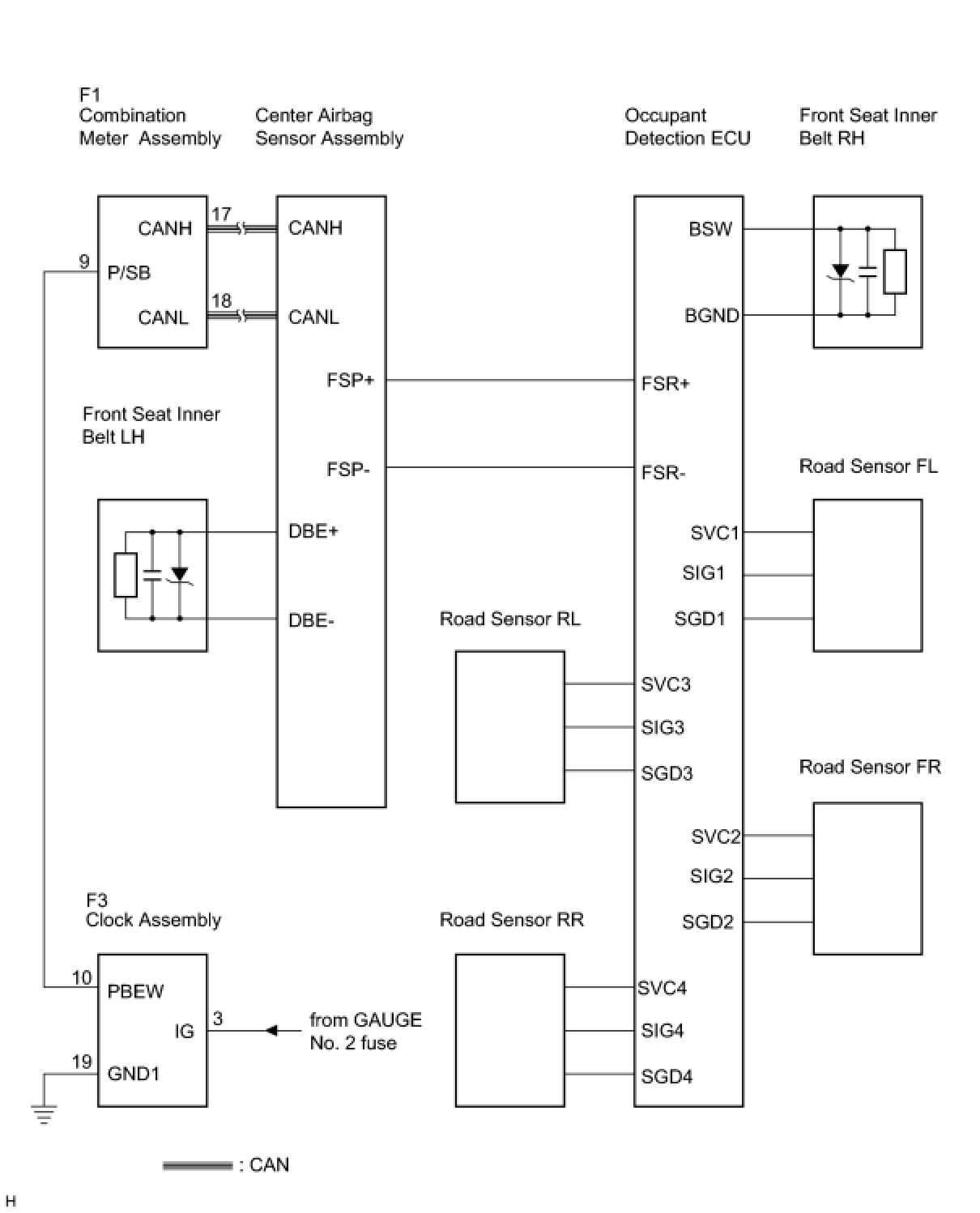

SEAT BELT: SEAT BELT WARNING SYSTEM: SYSTEM DIAGRAM






1. Driver seat belt warning light

(a) When the driver seat belt is not fastened with the ignition switch on (IG), the driver seat belt warning light on the combination meter assembly comes on to inform the driver. The center airbag assembly detects the driver seat belt status and sends signals to the combination meter assembly using CAN.

2. Passenger seat belt warning

(a) When the passenger seat belt is not fastened with the ignition switch on (IG) and the passenger seat occupied, check that the passenger seat belt warning light on the clock display blinks. The combination meter assembly displays the passenger seat belt status and whether the passenger seat is occupied.
