SEAT BELT: CHILD RESTRAINT SEAT TETHER ANCHOR: REMOVAL

1. REMOVE REAR SEAT CUSHION ASSEMBLY Removal

2. REMOVE REAR SEAT HEADREST ASSEMBLY

3. REMOVE REAR CENTER SEAT HEADREST ASSEMBLY

4. REMOVE REAR SEAT BACK ASSEMBLY (for Fixed Seat Type) Removal

5. REMOVE SEPARATE TYPE REAR SEAT BACK ASSEMBLY LH (for Fold Down Seat Type) Removal

6. REMOVE SEPARATE TYPE REAR SEAT BACK ASSEMBLY RH (for Fold Down Seat Type) Removal

7. REMOVE REAR SIDE SEAT BACK ASSEMBLY LH (for Fold Down Seat Type) Removal

8. REMOVE REAR SIDE SEAT BACK ASSEMBLY RH (for Fold Down Seat Type) Removal

9. REMOVE REAR SEAT BACK COVER (for Reclining Seat Type) Removal

10. REMOVE SEPARATE TYPE REAR SEAT BACK ASSEMBLY LH (for Reclining Seat Type) Removal

11. REMOVE SEPARATE TYPE REAR SEAT BACK ASSEMBLY RH (for Reclining Seat Type) Removal

12. REMOVE CENTER SEAT BACK ASSEMBLY (for Reclining Seat Type) Removal

13. REMOVE REAR DOOR SCUFF PLATE LH Removal

14. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH

15. REMOVE REAR DOOR SCUFF PLATE RH Removal

16. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH

17. REMOVE RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY LH (for Reclining Seat Type) Disassembly

18. REMOVE RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY RH (for Reclining Seat Type)

HINT
Use the same procedures for the RH side and the LH side.

19. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH Removal

20. DISCONNECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH (for TMC Made) Removal

21. DISCONNECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH (for TMMK Made) Removal

22. REMOVE ROOF SIDE INNER GARNISH LH Removal

23. REMOVE ROOF SIDE INNER GARNISH RH Removal

24. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY (for LH Side) Removal

25. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY (for RH Side) Removal

26. REMOVE REAR SEAT SHOULDER BELT COVER Removal

27. REMOVE REAR SEAT SHOULDER BELT HOLE COVER Removal

28. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY Removal

29. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (for Reclining Seat Type) Removal

30. REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET

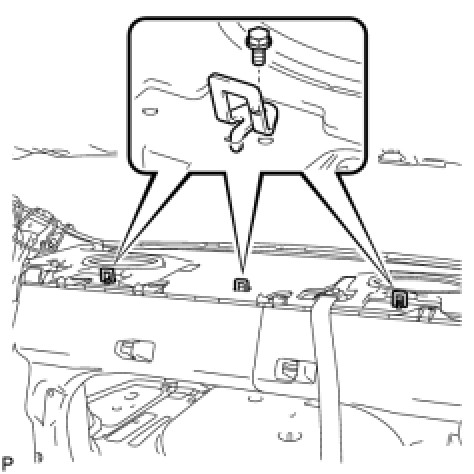

(a) Remove the 3 bolts and the 3 child restraint seat tether anchor brackets.
