Removal

SUPPLEMENTAL RESTRAINT SYSTEM: CENTER AIRBAG SENSOR ASSEMBLY: REMOVAL

1. PRECAUTION

CAUTION:
Be sure to read "PRECAUTION" thoroughly before servicing Airbag System (for TMC Made) for TMC made, Airbag System (except TMC Made) except TMC made).

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.

3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle) Removal

4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) Removal

5. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH Removal

6. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH Removal

7. REMOVE FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY (for Automatic Transaxle) Removal

8. REMOVE UPPER CONSOLE PANEL (for Manual Transaxle) Removal

9. REMOVE UPPER CONSOLE REAR PANEL SUB-ASSEMBLY (for Automatic Transaxle) Removal

10. REMOVE UPPER CONSOLE REAR PANEL SUB-ASSEMBLY (for Manual Transaxle) Removal

11. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY Removal

12. REMOVE FRONT DOOR SCUFF PLATE LH Removal

13. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH Removal

14. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH Removal

15. REMOVE FRONT DOOR SCUFF PLATE RH Removal

16. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH Removal

17. REMOVE INSTRUMENT PANEL NO. 2 UNDER COVER SUB-ASSEMBLY Removal

18. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

for TMC made: Removal

for TMMK made: Removal

19. REMOVE CONSOLE BOX POCKET Removal

20. REMOVE CONSOLE BOX CARPET Removal

21. REMOVE CONSOLE BOX ASSEMBLY Removal

22. REMOVE NO. 1 CONSOLE BOX INSERT FRONT Removal

23. REMOVE NO. 2 CONSOLE BOX INSERT FRONT Removal

24. REMOVE NO. 1 CONSOLE BOX DUCT (for Automatic Air Conditioning System) Removal

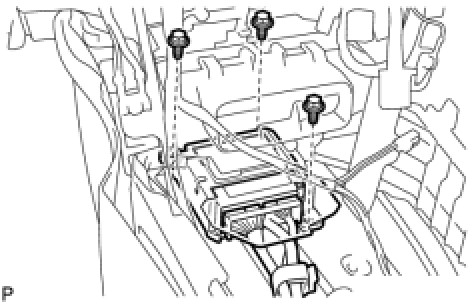

25. REMOVE CENTER AIRBAG SENSOR ASSEMBLY

(a) Turn back the carpet.

(b) Disconnect the holder (with connectors).
