Starter Cut Relay (w/ Smart Key System)

2AR-FE STARTING: STARTER CUT RELAY (w/ Smart Key System): ON-VEHICLE INSPECTION

1. INSPECT STARTER CUT RELAY

(a) Using an ohmmeter, measure the resistance between each terminal.

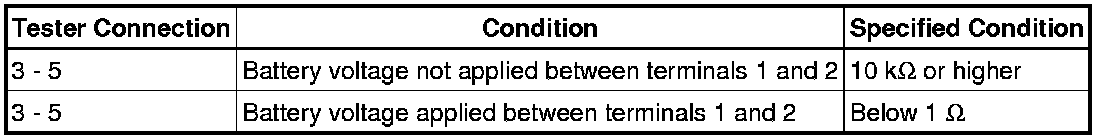

Standard Resistance:





If the result is not as specified, replace the starter cut relay.
