Ignition Relay: Testing and Inspection

2AR-FE ENGINE CONTROL SYSTEM: IGNITION RELAY NO. 2: INSPECTION

1. INSPECT IGNITION RELAY NO. 2

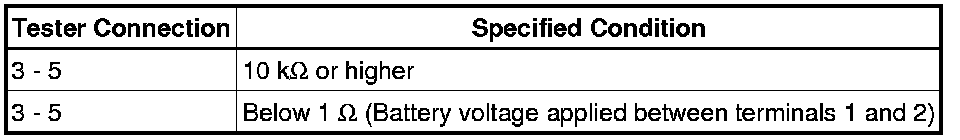

(a) Using an ohmmeter, measure the resistance according to the value(s) in the table below.





Standard Resistance:





If the result is not as specified, replace the relay.
