Home >> Toyota >> 2011 >> Camry L4-2.5L (2AR-FE) >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Variable Induction System >> Variable Induction Control Valve >> Service and Repair >> Components

Components

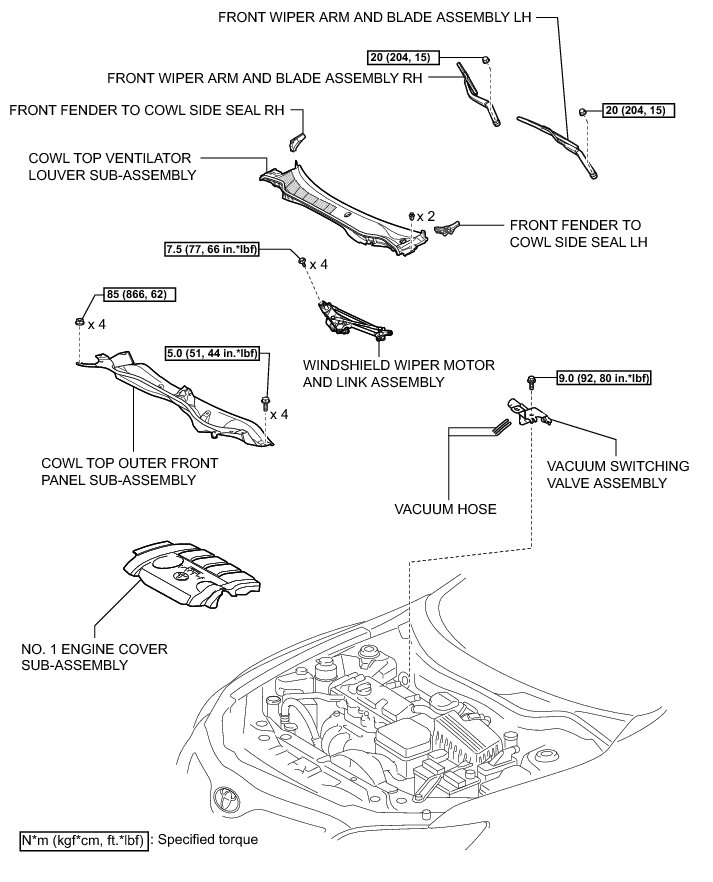

2AR-FE INTAKE: VACUUM SWITCHING VALVE (for ACIS): COMPONENTS
