Installation

2AR-FE FUEL: FUEL PRESSURE REGULATOR: INSTALLATION

1. INSTALL FUEL PRESSURE REGULATOR ASSEMBLY

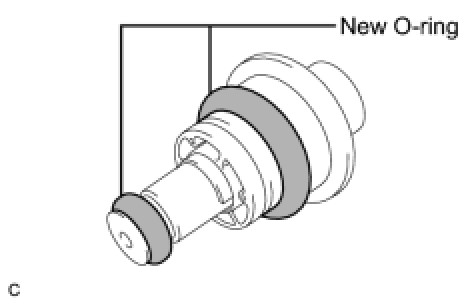

(a) Apply a light coat of gasoline to 2 new O-rings, and install them to the fuel pressure regulator.

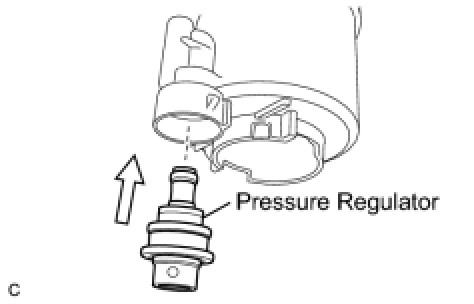

(b) Install the fuel pressure regulator to the fuel filter.





2. INSTALL FUEL PUMP

(a) Install the fuel pump Reassembly.

3. INSTALL FUEL SUCTION TUBE ASSEMBLY WITH PUMP AND GAUGE

(a) Install the fuel suction tube assembly with pump and gauge Installation.
