Installation

2AR-FE FUEL: FUEL PRESSURE PULSATION DAMPER: INSTALLATION

1. INSTALL FUEL PRESSURE PULSATION DAMPER ASSEMBLY

(a) Apply a light coat of gasoline or spindle oil to a new O-ring of the fuel pressure pulsation damper.

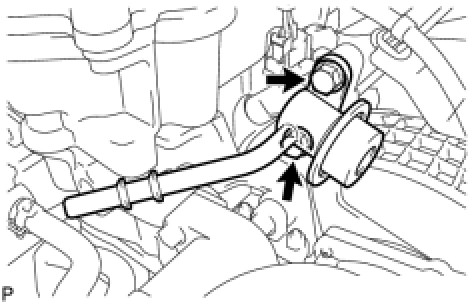

(b) Install the fuel pressure pulsation damper with the 2 bolts.





Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

NOTICE:
Make sure that the O-ring is not cracked or jammed when installing the damper.

2. INSTALL FUEL TUBE SUB-ASSEMBLY





(a) Connect the fuel tube.

(b) Push the fuel tube connector until it makes a "click" sound.

(c) Install a new No. 2 fuel pipe clamp.

(d) Install the fuel tube to the fuel hose clamp.

(e) Push in the tube connector to the pipe until the tube connector makes a "click" sound.





NOTICE:
* Before connecting the connector and fuel pipe, check that there is no damage or foreign matter on the connecting part of the fuel pipe.
* After connecting the fuel tube connector and pipe, check that they are securely connected by trying to pull them apart.

(f) Install the No. 1 fuel pipe clamp.

3. INSTALL AIR CLEANER CAP SUB-ASSEMBLY (for PZEV) Installation

4. INSTALL AIR CLEANER CAP SUB-ASSEMBLY (except PZEV) Installation

5. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY Installation

6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

7. INSPECT FOR FUEL LEAK Fuel System
