Fuel System - Accelerator Pedal Damage Prevention: Overview
T-SB-0335-10November 30, 2010
Accelerator Pedal Bracket Damaged
Service Category
Vehicle Exterior
Section
Body Structure
Market
USA

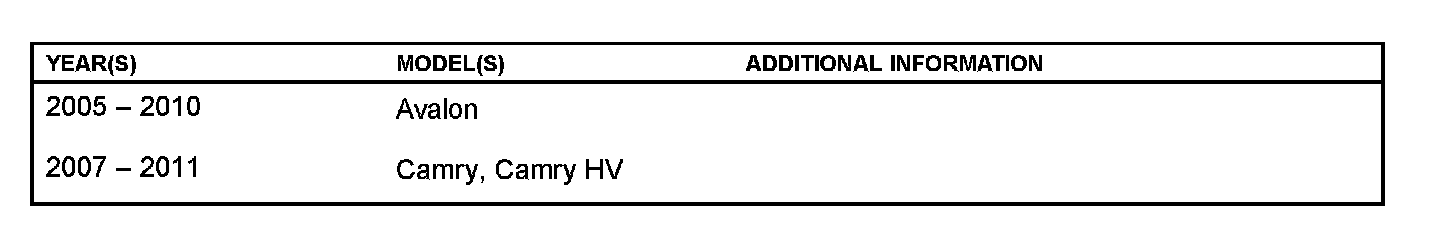

Applicability
Introduction
When removing or installing the accelerator pedal on 2005 - 2010 Avalon or 2007 - 2011 Camry and Camry HV vehicles the accelerator pedal mounting bracket may become damaged. Use the following procedure if this should occur.

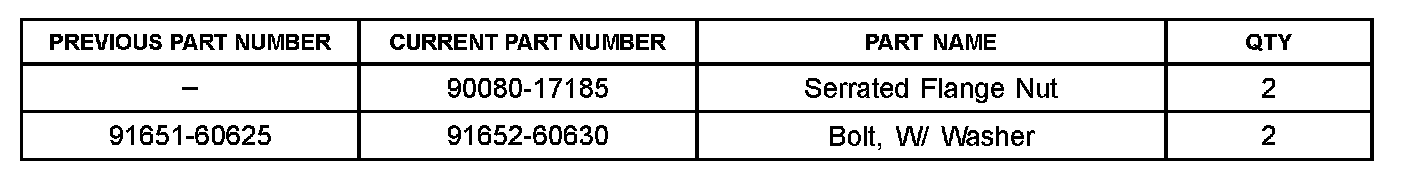

Parts Information

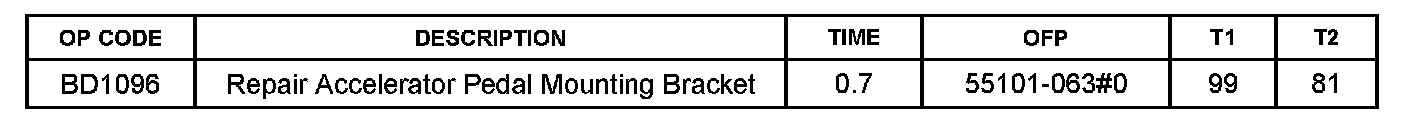

Warranty Information
APPLICABLE WARRANTY
^ This repair is covered under the Toyota Comprehensive Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date.
^ Warranty application is limited to occurrence of the specified condition described in this bulletin.
Required Tools & Equipment
Overview

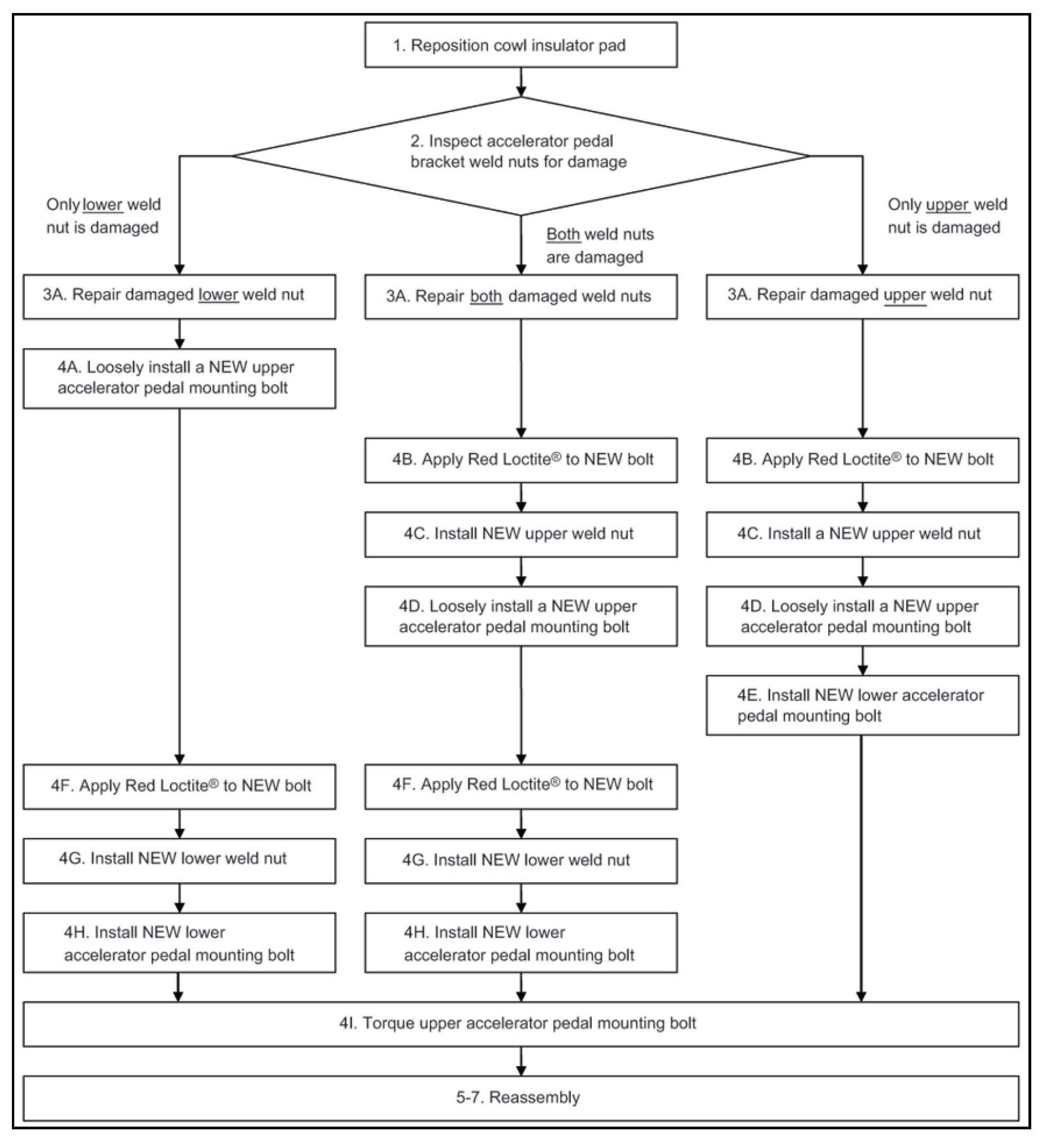

Utilize the repair process flowchart below to identify the proper steps required to repair the condition.
Avalon Disassembly
Camry and Camry HV Disassembly
Repair (all models)
