Installation

2AR-FE EMISSION CONTROL: PURGE VALVE: INSTALLATION

1. INSTALL NO. 1 VACUUM SWITCHING VALVE ASSEMBLY

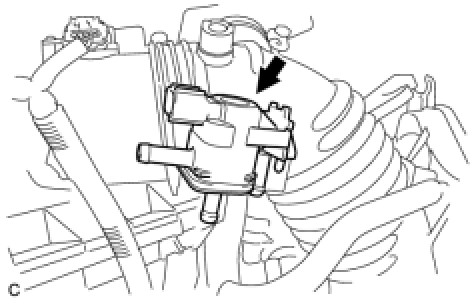

(a) Install the No. 1 vacuum switching valve assembly.

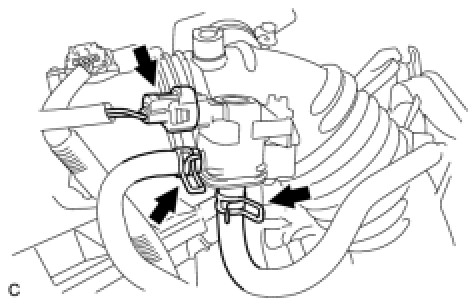

(b) Connect the connector and 2 fuel vapor feed hoses.
