Mechanical Specifications

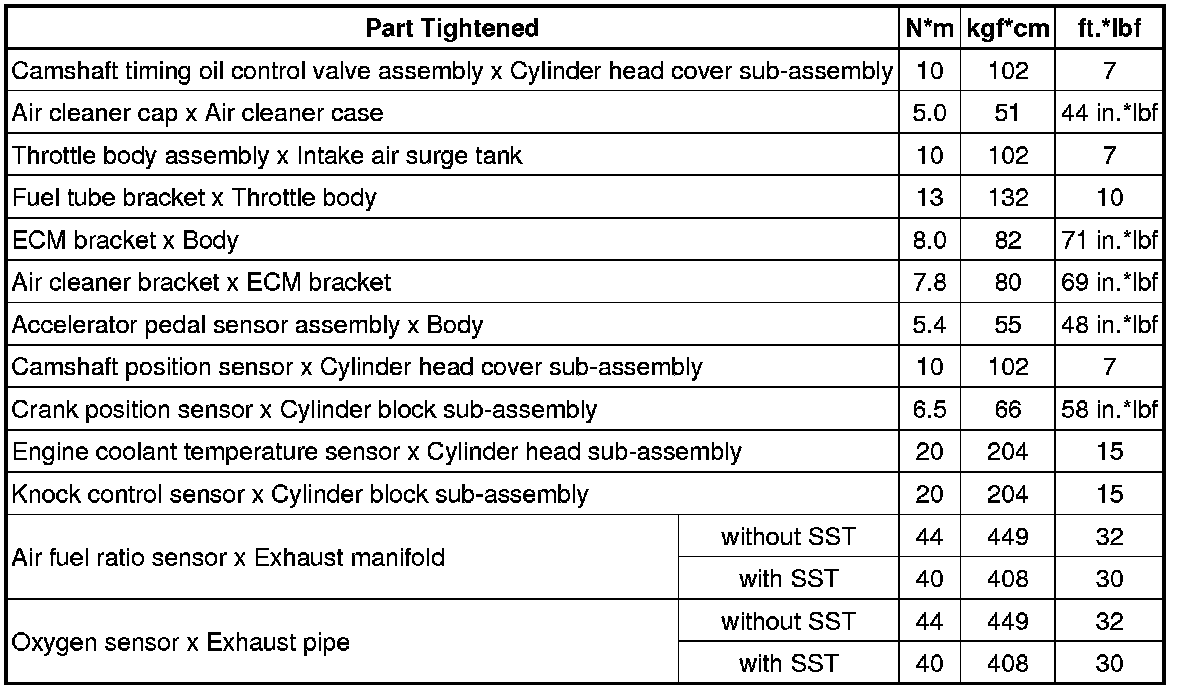

SERVICE SPECIFICATIONS: 2AR-FE ENGINE CONTROL SYSTEM: TORQUE SPECIFICATIONS
