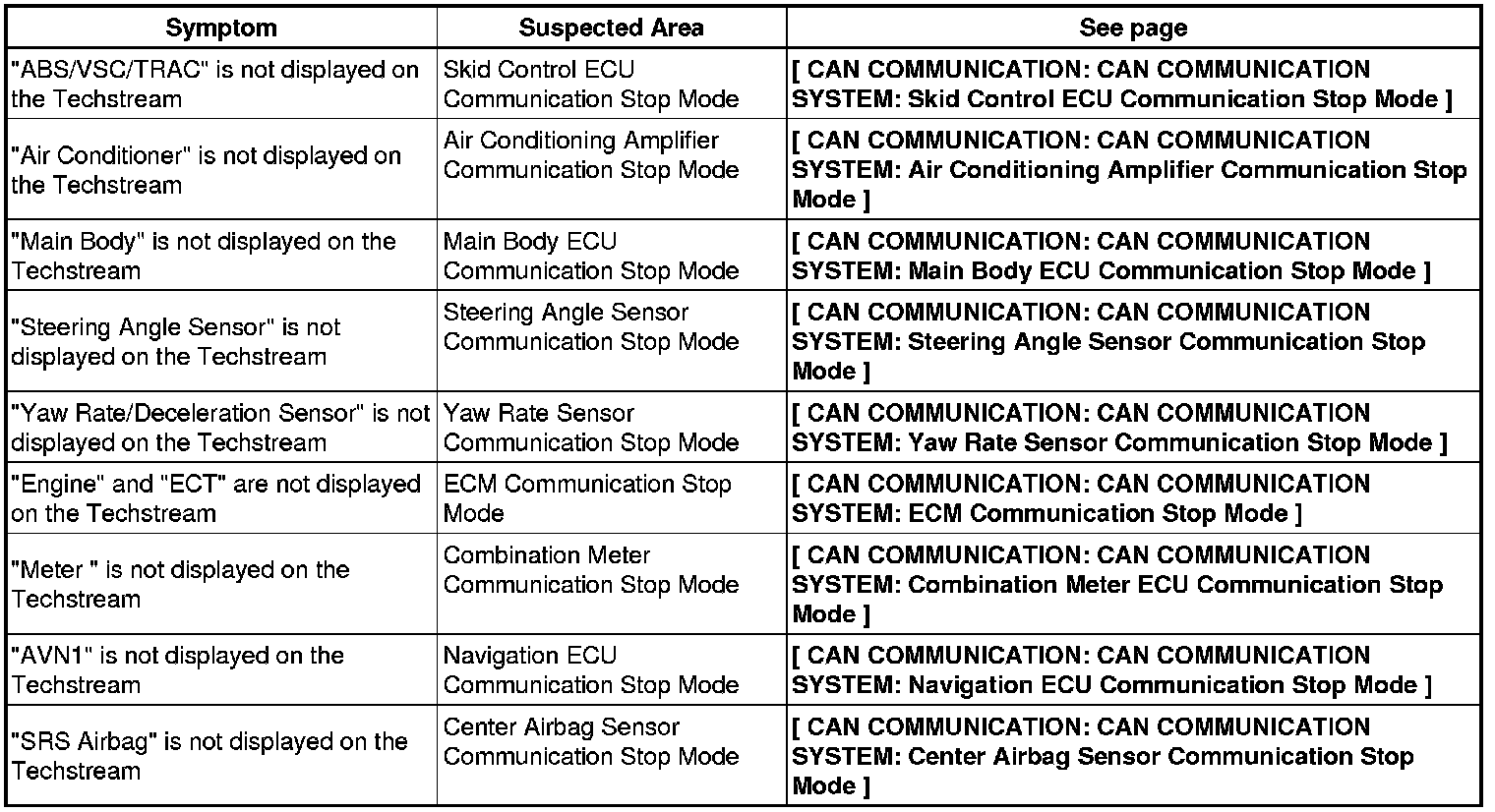

CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: PROBLEM SYMPTOMS TABLE

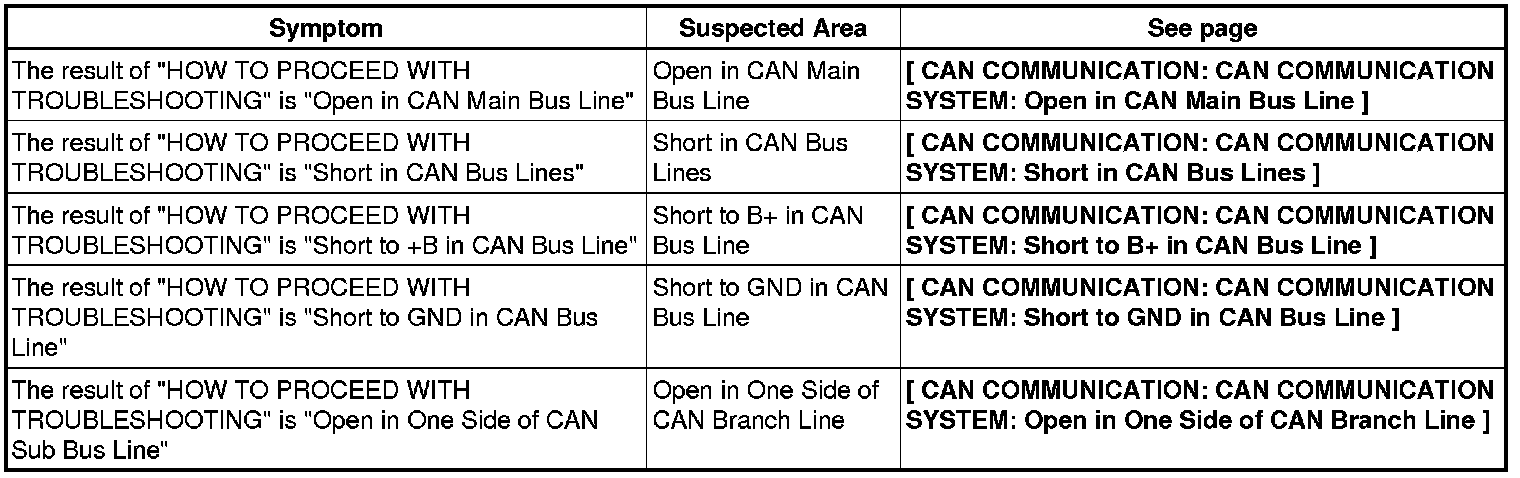

RESULT LIST OF HOW TO PROCEED WITH TROUBLESHOOTING:
COMMUNICATION STOP MODE TABLE:
