ECM Communication Stop Mode

CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: ECM Communication Stop Mode
- ECM Communication Stop Mode

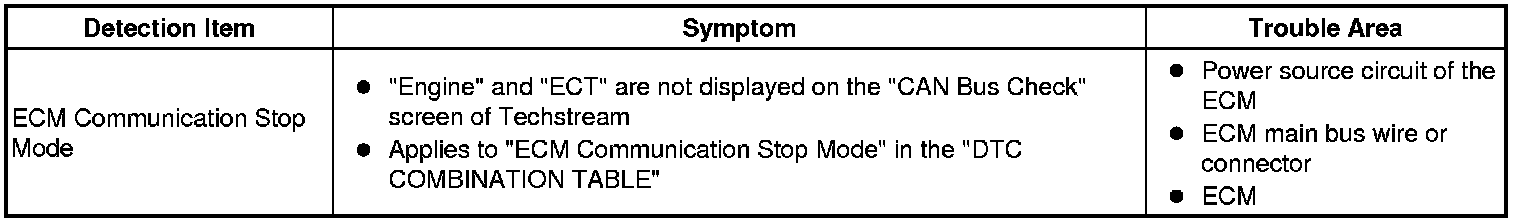

DESCRIPTION

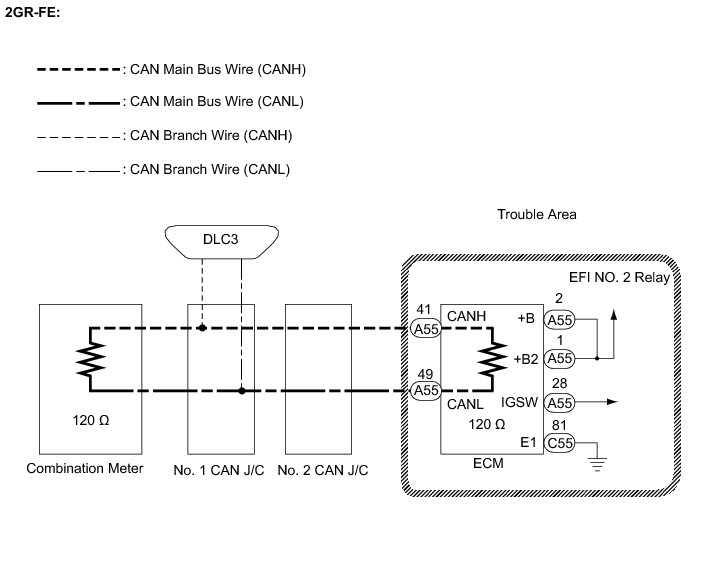

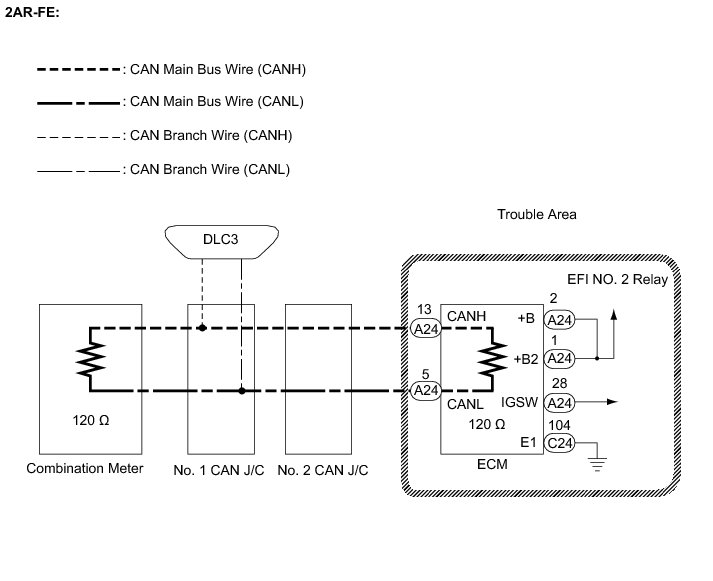

WIRING DIAGRAM









INSPECTION PROCEDURE

NOTICE:
* Turn the ignition switch off before measuring the resistance of the CAN main wire and CAN branch wires.
* After the ignition switch is turned off, check that the key reminder warning system and light reminder warning system are not operating.
* Before measuring the resistance, leave the vehicle as is for at least 1 minute and do not operate the ignition switch, any other switches or the doors. If doors need to be opened in order to check connectors, open the doors and leave them open.

HINT
Operating the ignition switch, any other switches or any triggers related ECU and sensor communication on the CAN, which would cause resistance reading variations.

PROCEDURE

1. CHECK OPEN IN CAN BUS WIRE (ECU MAIN BUS WIRE)

(a) Disconnect the ECM connector.





(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:

2AR-FE
2GR-FE










NG -- REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR
OK -- Continue to next step.

2. CHECK ECM POWER SOURCE CIRCUIT

(a) Check the ECM power source circuit (2AR-FE: Component Tests and General Diagnosticsor 2GR-FE: Component Tests and General Diagnostics)

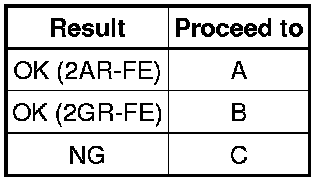

Result:





C -- REPAIR OR REPLACE ECM POWER SOURCE CIRCUIT

B -- REPLACE ECM (2GR-FE) Removal

A -- REPLACE ECM (2AR-FE) Removal
