Home >> Toyota >> 2011 >> Camry L4-2.5L (2AR-FE) >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Application and ID >> Engine Room R/B and Engine Room J/B

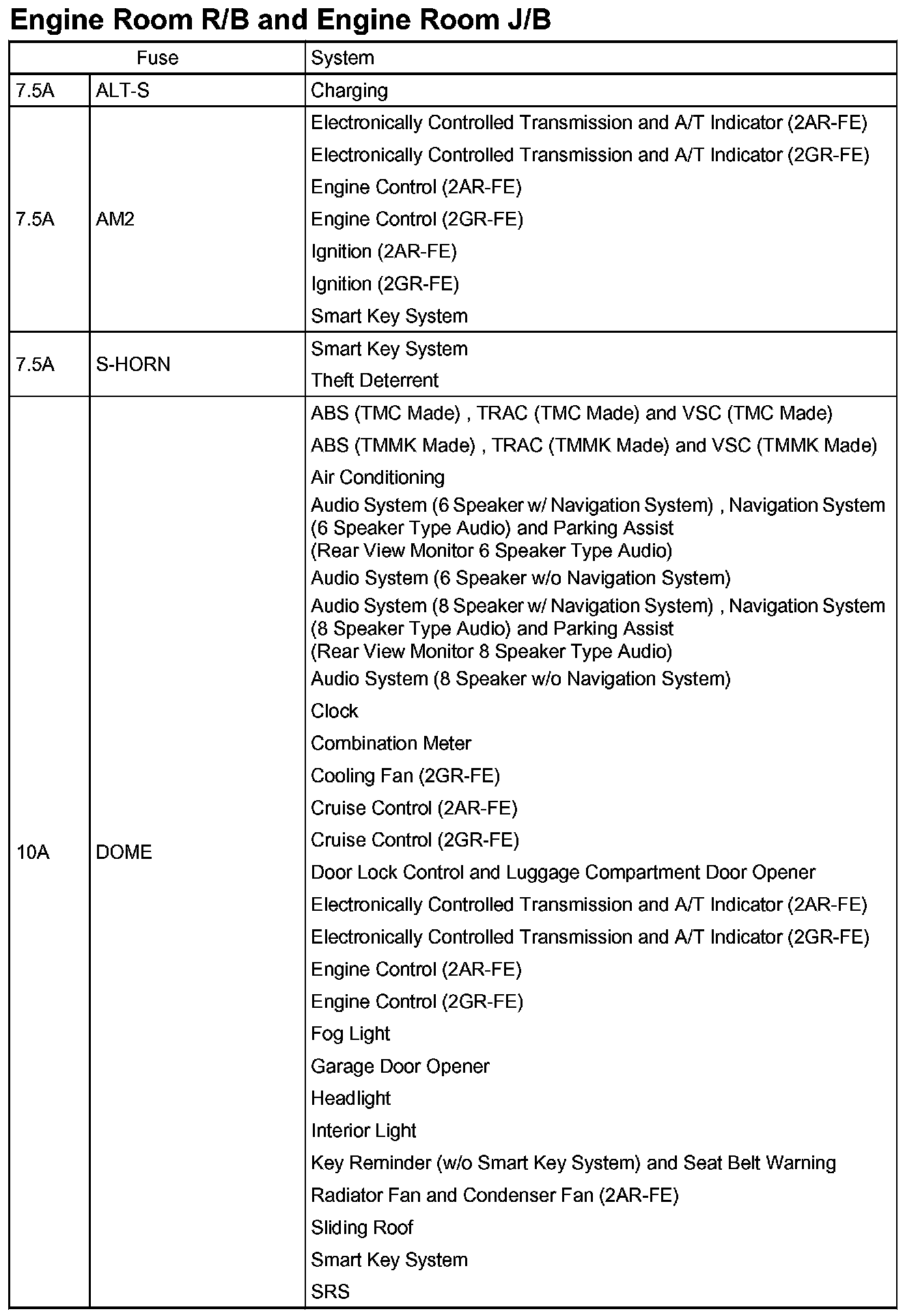

Engine Room R/B and Engine Room J/B

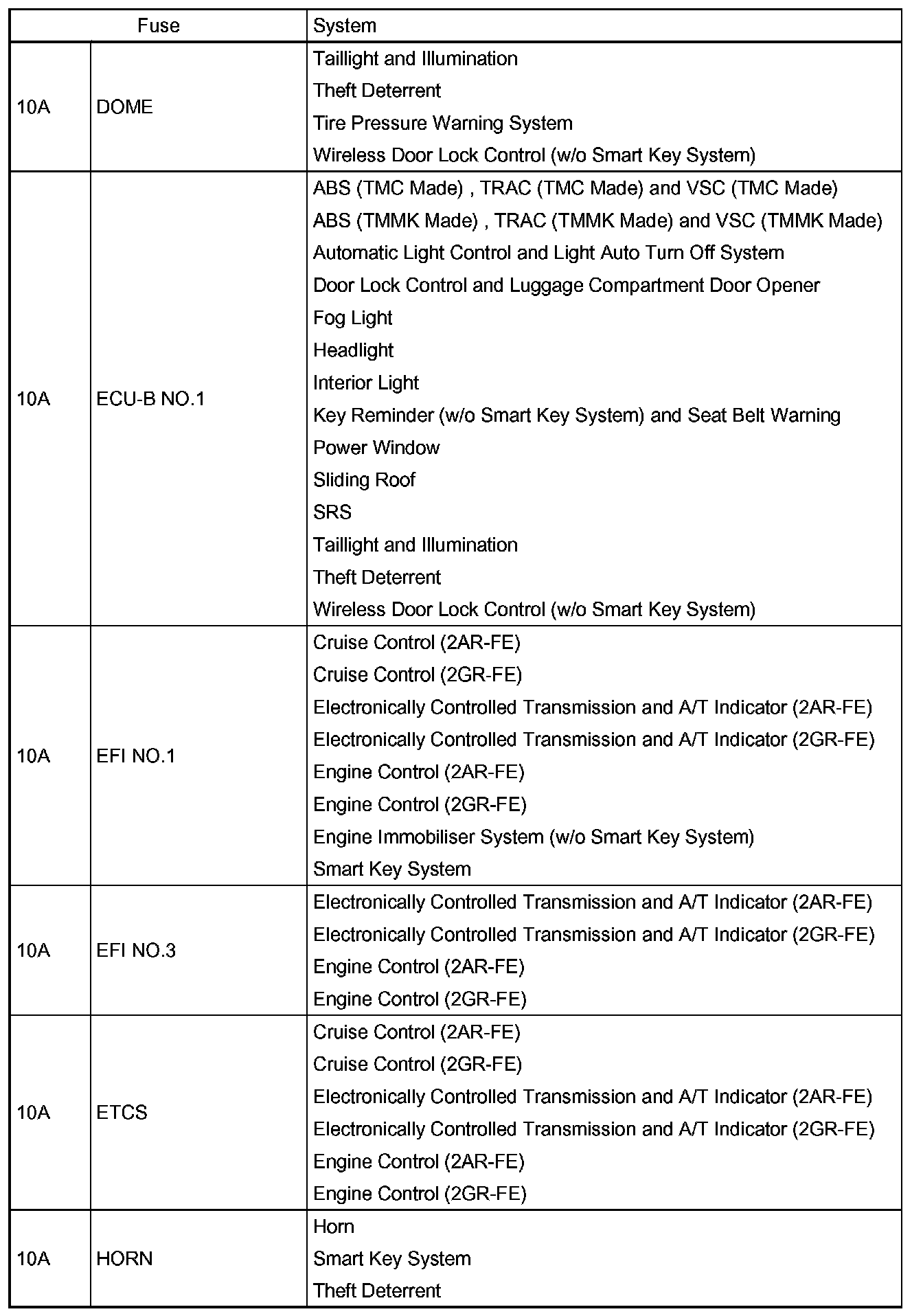

Engine Room R/B and Engine Room J/B:

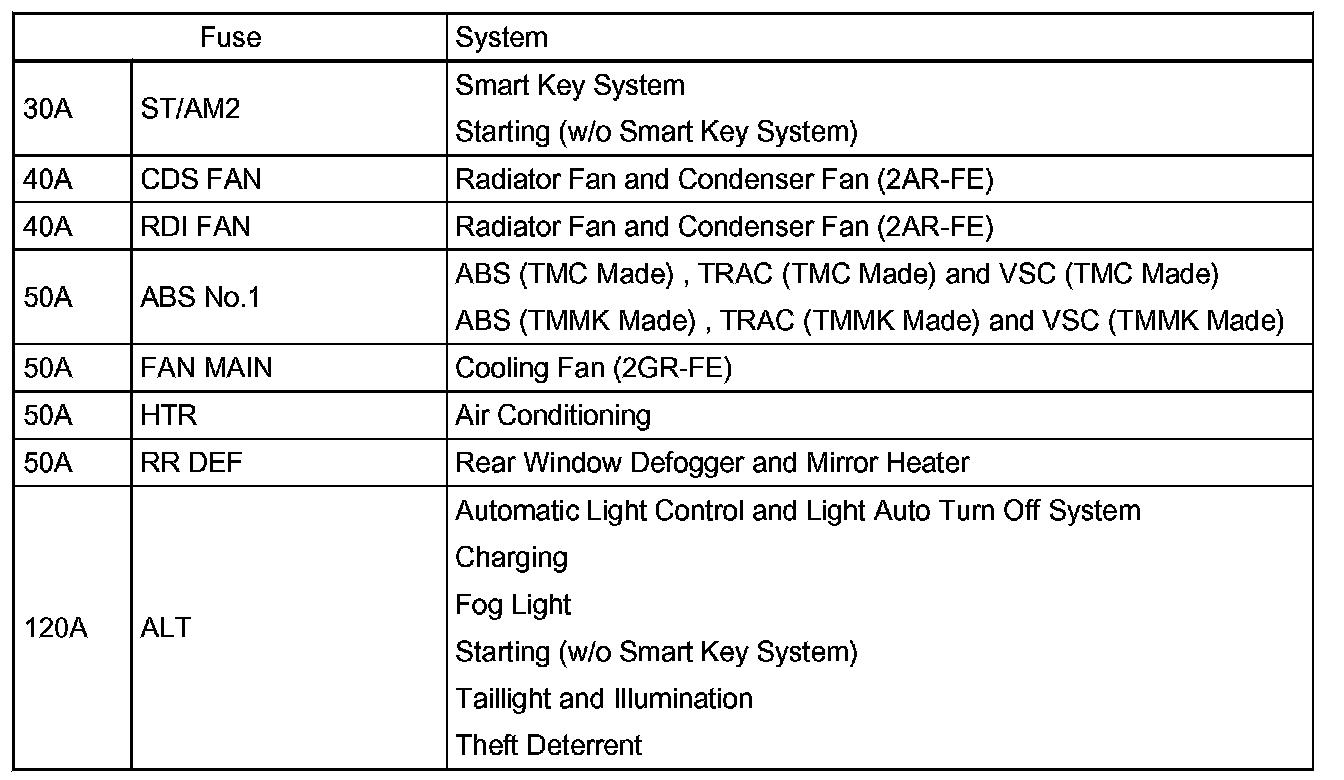

Engine Room R/B and Engine Room J/B:

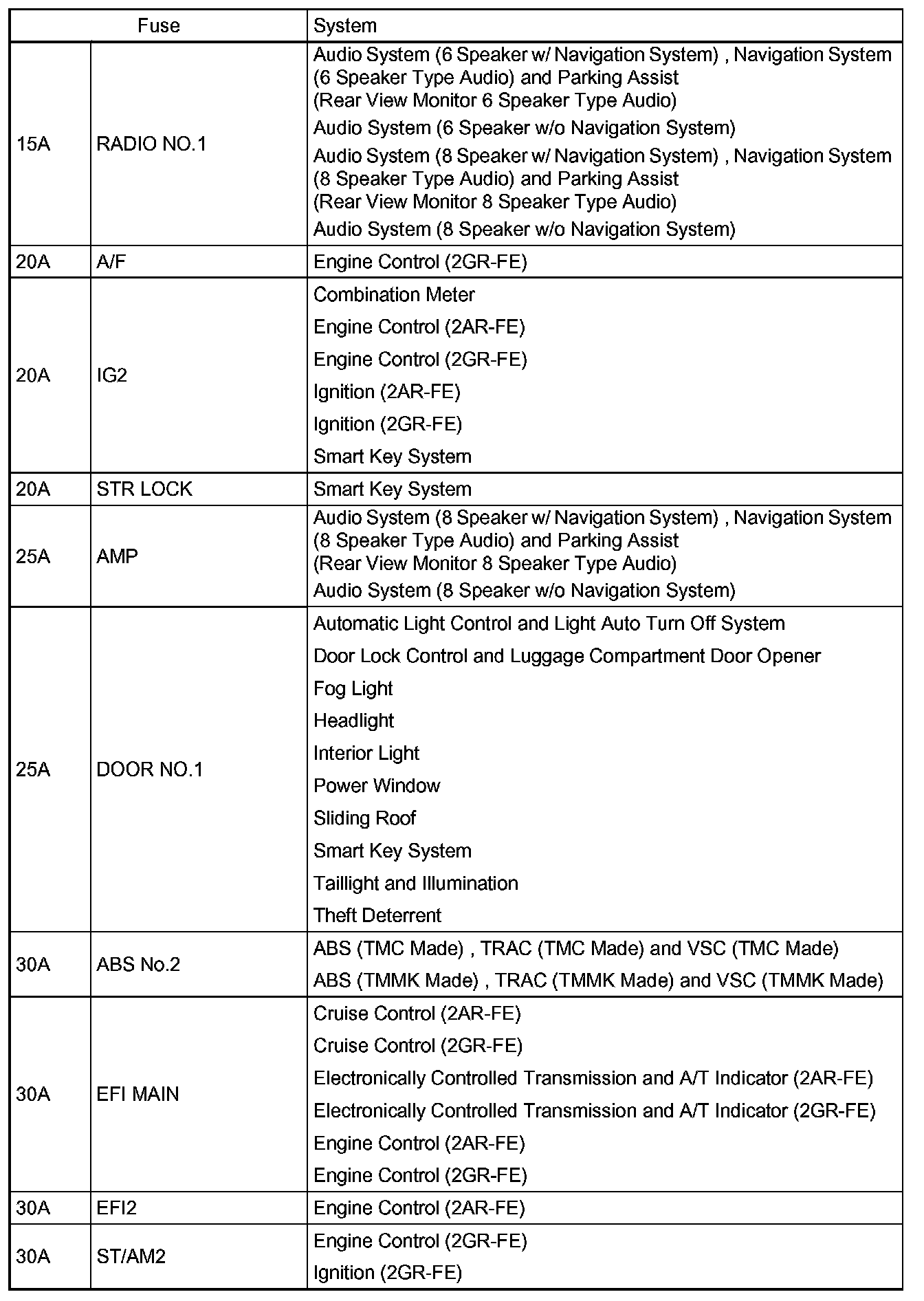

Engine Room R/B and Engine Room J/B:

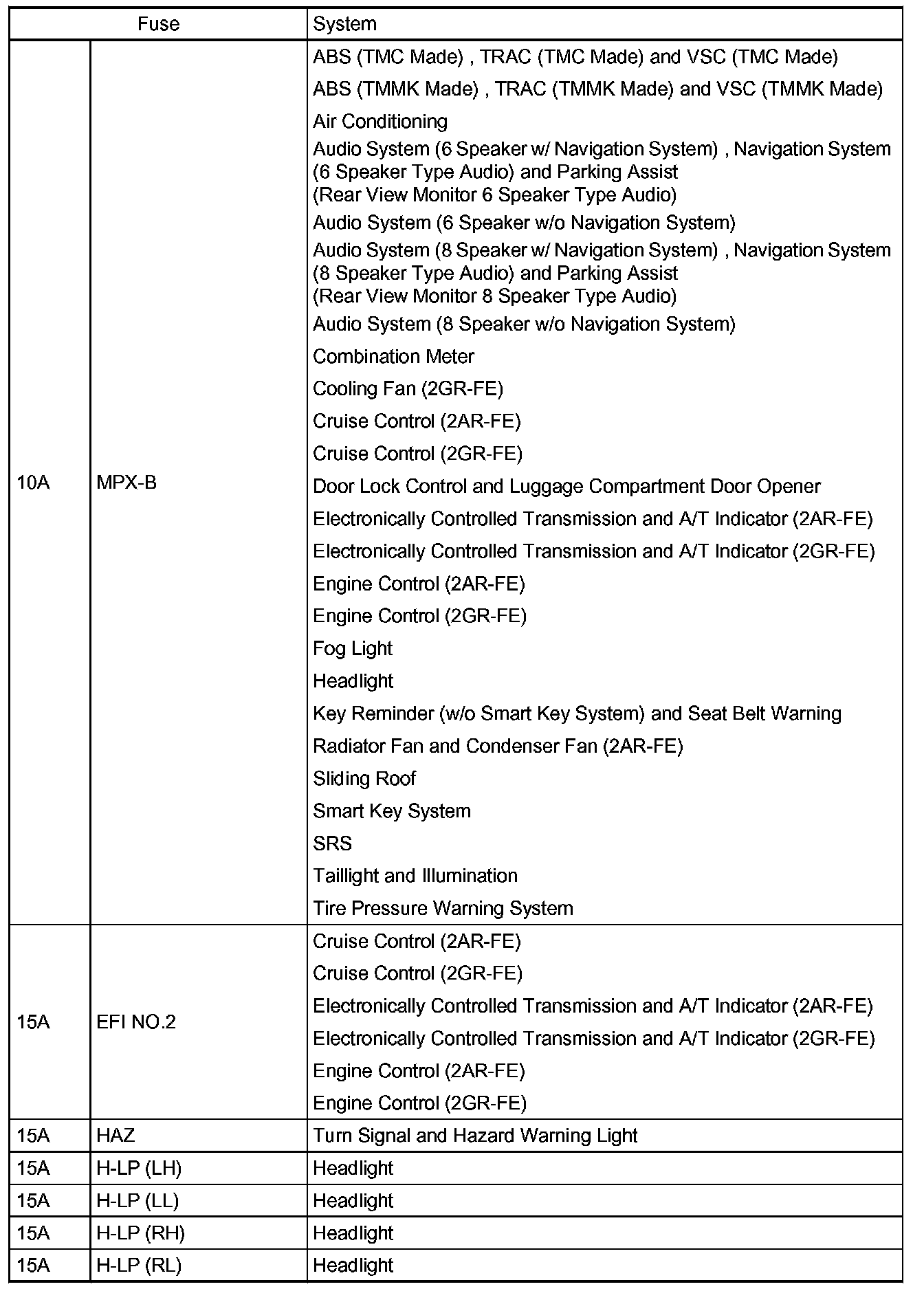

Engine Room R/B and Engine Room J/B:






Engine Room R/B and Engine Room J/B:
