Replacement

AXLE: REAR AXLE HUB BOLT: REPLACEMENT

1. REMOVE REAR WHEEL

2. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY Removal

3. REMOVE REAR DISC Disassembly

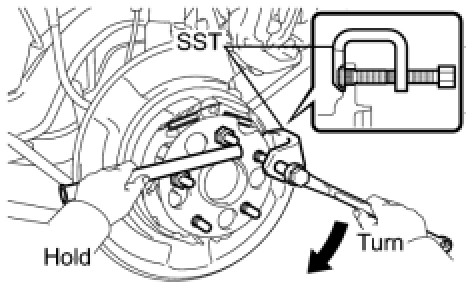

4. REMOVE REAR AXLE HUB BOLT

(a) Temporarily install the 2 nuts and washers to the rear axle hub bolt as shown in the illustration.





(b) Using SST and a brass bar or an equivalent tool to hold the hub and bearing assembly, remove the rear axle hub bolt.

SST : 09628-10011

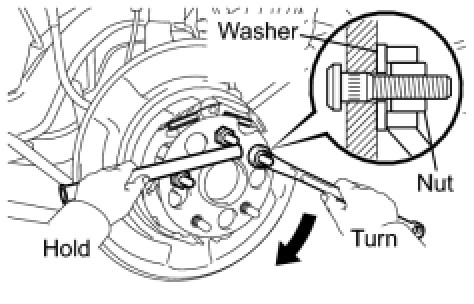

5. INSTALL REAR AXLE HUB BOLT

(a) Install a washer and nut to a new bolt as shown in the illustration.





(b) Using a brass bar or an equivalent tool to hold the hub and bearing assembly, install the rear axle hub bolt by tightening the nut.

6. INSTALL REAR DISC Reassembly

7. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY Installation

8. INSTALL REAR WHEEL

Torque : 103 Nm (1,050 kgf-cm, 76 ft-lbf)
