Component Tests and General Diagnostics

LIGHTING: VANITY LIGHT: INSPECTION

1. INSPECT VANITY LIGHT ASSEMBLY

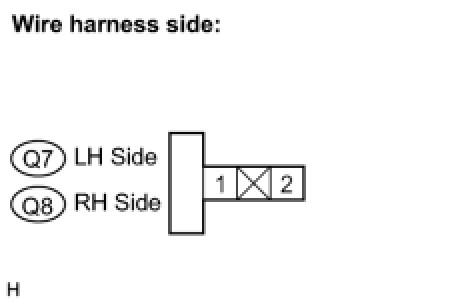

(a) Measure the voltage according to the value(s) in the table below.





Standard voltage:

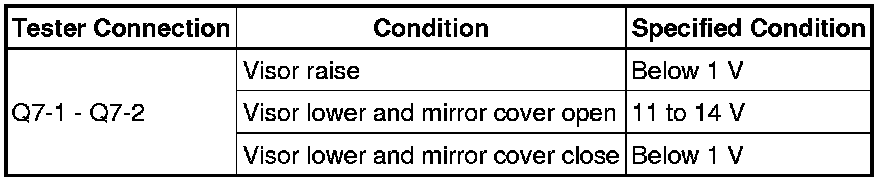

LH Side

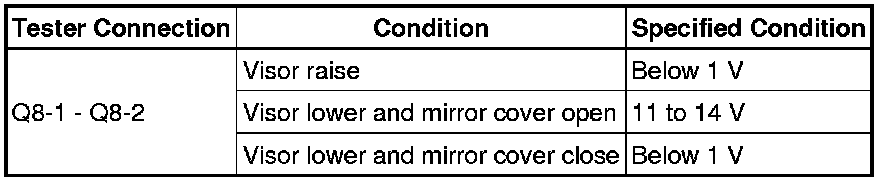

RH Side










If the result is not as specified, there is a malfunction on the wire harness side.

If the result is as specified, but the vanity light does not come on, replace the bulb.
