Front Fog Light Circuit

LIGHTING: LIGHTING SYSTEM: Front Fog Light Circuit
- Front Fog Light Circuit

DESCRIPTION

The main body ECU controls the FOG relay when a signal is received from the headlight dimmer switch assembly.

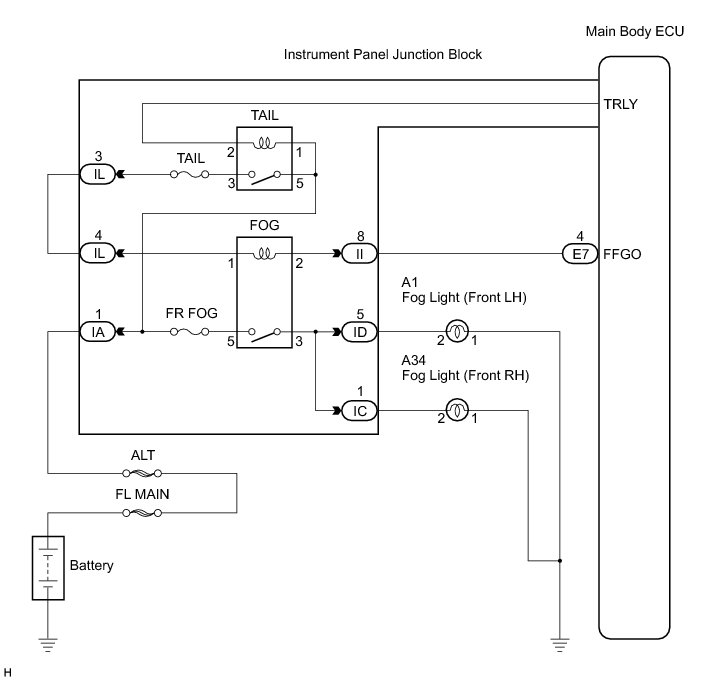

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. PERFORM ACTIVE TEST USING TECHSTREAM

(a) Connect Techstream to the DLC3.

(b) Turn the ignition switch on (IG).

(c) Turn Techstream on.

(d) Select the following menu items: Body Electrical / Main Body / Active Test.

(e) Check that the relay operates.

Main Body:





OK:

Front fog light relay operates. (Front fog lights come on.)

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
NG -- Continue to next step.

2. INSPECT FUSE (FR FOG)

(a) Remove the FR FOG fuse from the instrument panel J/B assembly.

(b) Measure the resistance of the fuse.

Standard resistance:

Below 1 Ohms

NG -- REPLACE FUSE
OK -- Continue to next step.

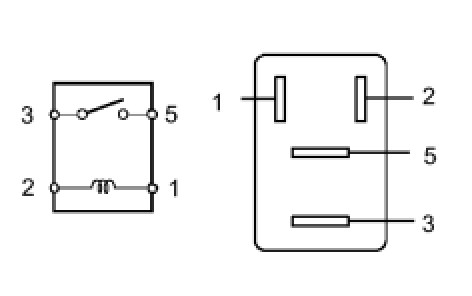

3. INSPECT FOG LIGHT RELAY

(a) Remove the front fog light relay from the instrument panel J/B assembly.

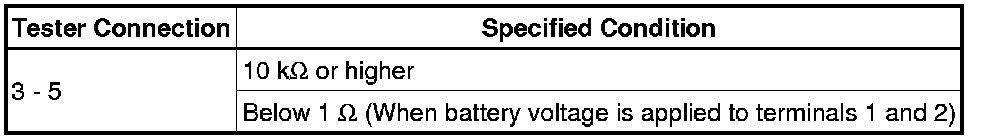

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- REPLACE FOG LIGHT RELAY
OK -- Continue to next step.

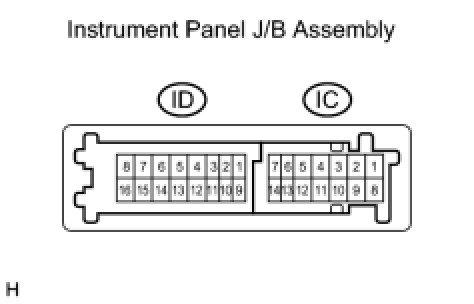

4. INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

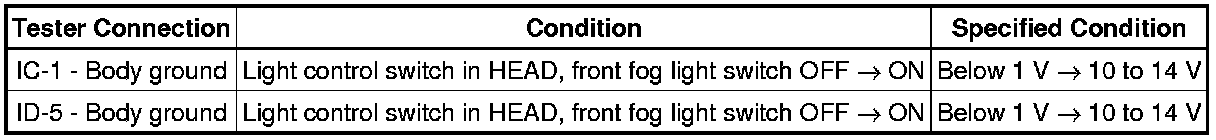

(a) Measure the voltage according to the value(s) in the table below.





Standard voltage:





OK -- REPAIR OR REPLACE HARNESS OR CONNECTOR (INSTRUMENT PANEL J/B ASSEMBLY - BODY GROUND)
NG -- Continue to next step.

5. INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

(a) Measure the voltage according to the value(s) in the table below.





Standard voltage:





NG -- REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
OK -- Continue to next step.

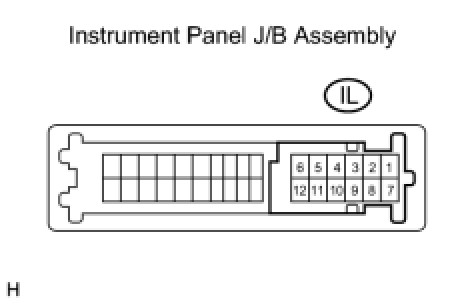

6. CHECK HARNESS AND CONNECTOR (BETWEEN CONNECTOR IL-3 AND CONNECTOR IL-4)

(a) Measure the voltage according to the value(s) in the table below.





Standard voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

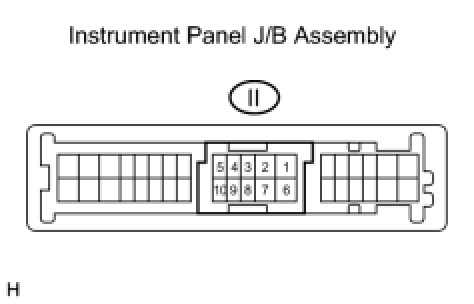

7. INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

(a) Disconnect the II instrument panel J/B assembly connector.





(b) Measure the voltage according to the value(s) in the table below.

Standard voltage:





NG -- REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
OK -- Continue to next step.

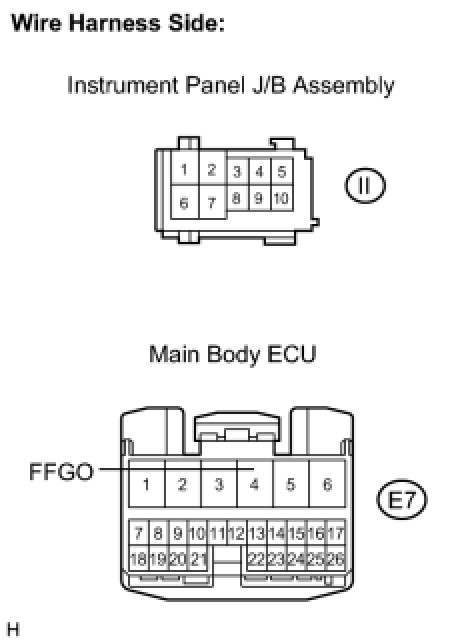

8. CHECK HARNESS AND CONNECTOR (BODY ECU - INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY)

(a) Disconnect the E7 main body ECU connector.





(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
