On-Vehicle Inspection

LIGHTING: STOP LIGHT SWITCH: ON-VEHICLE INSPECTION

1. INSPECT STOP LIGHT SWITCH

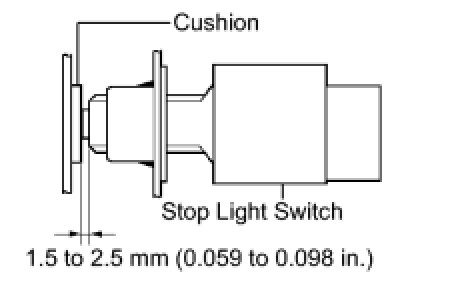

(a) Check the protrusion of the rod.





Protrusion of the rod:

1.5 to 2.5 mm (0.059 to 0.098 in.)

If the protrusion is not within the specified range, adjust it.

CAUTION:
Do not depress the brake pedal.
