Installation

LIGHTING: STOP LIGHT SWITCH: INSTALLATION

1. INSTALL STOP LIGHT SWITCH ASSEMBLY

(a) Insert the stop light switch assembly until the body hits the cushion.





NOTICE:
When inserting the stop light switch assembly, support the pedal from behind so that the pedal is not pushed in.

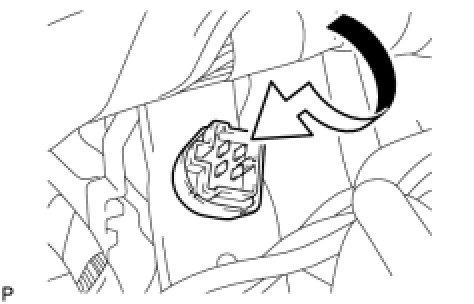

(b) Make a quarter turn clockwise to install the stop light switch assembly.

Torque : 1.5 Nm (15 kgf-cm, 13 in-lbf) or less





NOTICE:
When inserting the stop light switch assembly, support the pedal from behind so that the pedal is not pushed in.

(c) Connect the stop light switch connector to the stop light switch assembly.

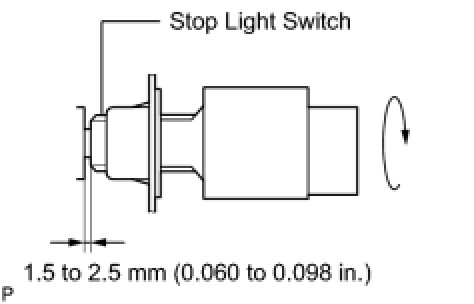

(d) Check the protrusion of the rod On-Vehicle Inspection.

2. INSTALL COMBINATION METER ASSEMBLY Installation

3. INSTALL INSTRUMENT CLUSTER FINISH PANEL NO.1 Installation

4. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL (w/o Smart Key System) Installation

5. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL (w/ Smart Key System) Installation

6. INSTALL NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY Installation

7. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH Installation

8. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH Installation

9. INSTALL FRONT DOOR SCUFF PLATE LH Installation
